Extending the Service Life of Thin Section Bearings: Professional Advice from CHG Bearings

July 21, 2025

Thin section bearings, renowned for their lightweight design, high rigidity, and space-saving advantages, have become critical components in high-end applications such as industrial robots, precision instruments, and medical equipment. Their service life directly impacts equipment reliability and total operating costs. As a specialized supplier of precision bearing solutions, CHG Bearings combines years of industry experience to outline the following core strategies for effectively extending the service life of thin section bearings:

1. Precision Installation: The Foundation for Avoiding Deformation

Strict Concentricity Control: Ensure machining accuracy and proper fit tolerances for bearing housings and shafts. Incorrect interference fits can easily cause ring deformation, disrupting internal clearance and stress distribution. CHG provides professional fit tolerance selection guidance.

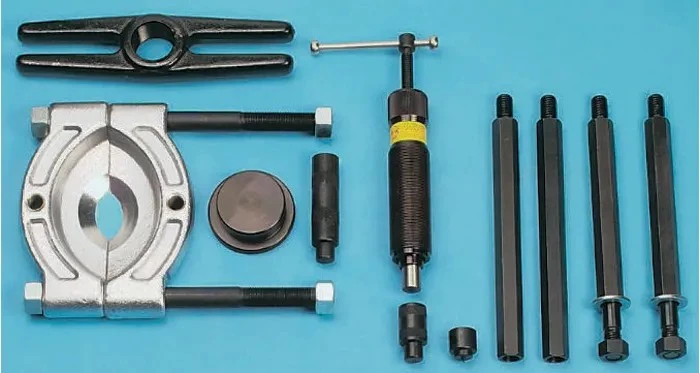

Uniform Force Application: Always use dedicated installation tools (e.g., hydraulic nuts or sleeves) to apply load evenly across the ring face. Never directly strike rings or rolling elements.

blog-1-1

Clean Installation Environment: Maintain cleanliness of the work area, shaft, housing, and bearing itself before installation to prevent micro-contaminant ingress that causes wear.

2. Lubrication Optimization: The Lifeline for Smooth Operation

Scientific Grease/Oil Selection: Choose appropriate lubricant types (grease or oil) and viscosity grades based on actual operating conditions (speed, load, temperature, sealing type). CHG engineers can assist with lubricant evaluation.
Standardized Lubrication Maintenance: Establish and adhere to regular relubrication intervals with proper replenishment quantities. Avoid over- or under-lubrication. Promptly remove old grease and associated wear debris contaminants. Effective sealing is essential for maintaining lubricant cleanliness.

3. Contamination Prevention: Combating Microscopic Threats

Effective Sealing Protection: Select appropriate sealing solutions (contact, non-contact, or combined types) based on the operating environment (dust, moisture, chemicals) to provide reliable barriers.
System Cleanliness Maintenance: Keep the entire lubrication system and bearing surroundings clean. Exercise extreme caution during maintenance to prevent external contaminant entry.

blog-1-1

CHG Bearings: Your Reliable Precision Motion Partner

Extending thin section bearing life requires a systematic approach, with strict control across every stage—from design selection and precision installation to standardized maintenance. CHG Bearings understands this deeply and is committed to providing customers with high-quality thin section bearings and professional technical support services.

We understand the unique demands of diverse applications and offer:

Expert Selection Guidance: Helping you choose the most suitable thin section bearing type and specification for your operating conditions.
Installation & Maintenance Advice: Providing practical installation guidelines and routine maintenance essentials.
Reliable Product Assurance: Strict manufacturing processes and quality control ensure consistent bearing performance.

Choose CHG Bearings for enduring precision performance.
