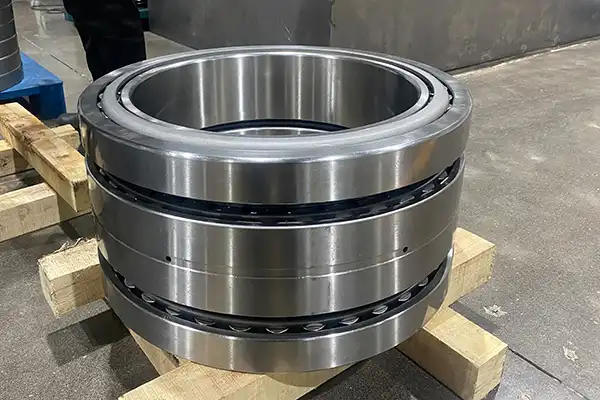

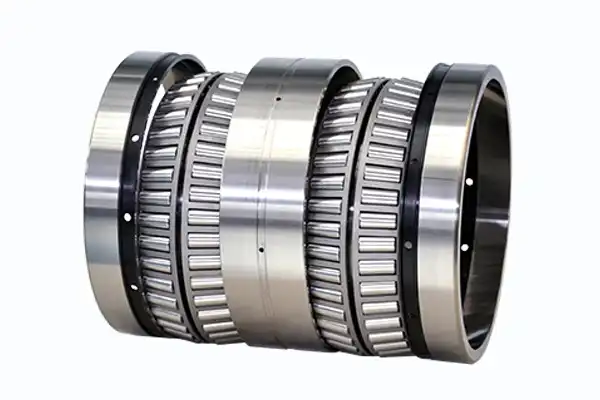

Four-row tapered roller bearings 3806/530 are mechanical components designed to handle substantial radial and axial loads simultaneously. These bearings have four rows of tapered rollers in a specific configuration that optimizes load distribution and enhances stability. The 3806/530 designation indicates a specific model with defined dimensions suitable for heavy-duty industrial applications.

What are the primary applications of Four row tapered roller bearings 3806/530?

Heavy Industrial Machinery Applications

Four row tapered roller bearings 3806/530 excel in heavy industrial machinery where stability and load capacity are essential. They're widely used in steel mills, particularly in rolling mill operations supporting work rolls and backup rolls. Their design handles enormous radial forces during metal forming while managing axial forces from operational shifts. The four-row configuration provides stability, minimizes vibration, and ensures precise positioning, directly affecting finished product quality. These bearings also perform well in mining equipment and cement manufacturing machinery, withstanding extreme loads and contamination risks.

Specialized Automotive and Transportation Equipment

In automotive and transportation equipment, these bearings support components subject to complex loading patterns. They're valuable in heavy-duty truck axles, large vehicle transmissions, and railway applications. Their ability to manage both radial and axial loads makes them ideal for wheel hubs in mining trucks and construction vehicles, where they withstand vehicle weight and lateral forces during turns. They're also crucial in transmission systems, maintaining precise gear alignment under varying loads, extending service life and reducing maintenance.

Power Generation and Marine Applications

The robust design of Four row tapered roller bearings 3806/530 makes them essential in power generation and marine applications. In wind turbines, they support the main shaft, withstanding rotational forces and axial loads from wind pressure. The four-row configuration maintains precise alignment under variable conditions. In hydroelectric power generation, they operate under considerable hydraulic forces. In marine applications, they're crucial in propulsion systems, supporting propeller shafts and withstanding vessel weight, propulsion forces, and impacts from rough seas. Their corrosion-resistant properties enhance suitability for marine environments.

How does the design of Four row tapered roller bearings 3806/530 enhance performance?

Optimized Roller Geometry for Load Distribution

These bearings feature optimized roller geometry that improves load distribution. Each tapered roller has a specific crown profile ensuring optimal contact with raceways under varying loads, minimizing edge stress concentrations. The rollers are arranged in face-to-face and back-to-back configurations, creating a balanced system distributing both radial and axial loads throughout the assembly. This increases load capacity compared to conventional designs. The tapered profile maintains proper alignment under high loads, preventing misalignment that could reduce bearing life.

Advanced Cage Design and Material Selection

Four row tapered roller bearings 3806/530 incorporate advanced cage designs that contribute to their performance. These cages provide precise roller guidance while minimizing friction and wear. Made from high-strength materials such as brass, steel, or polymers, they withstand rigorous demands. The cage design ensures optimal spacing between rollers, preventing roller-to-roller contact while maximizing load-carrying elements. This enhances load capacity and operational stability. The design also facilitates effective lubrication distribution, crucial for managing heat and ensuring long service life.

Precision Manufacturing and Assembly Processes

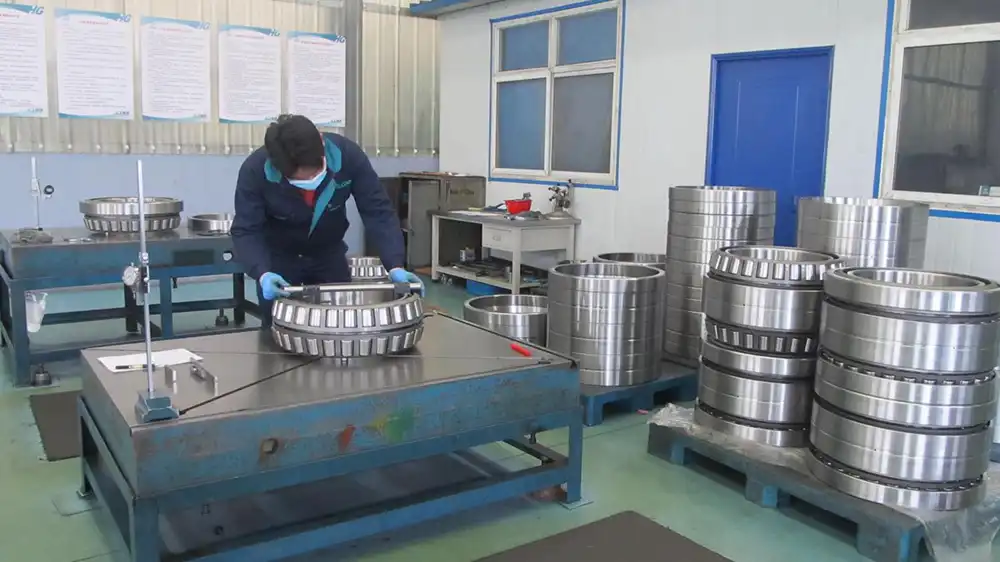

The exceptional performance stems from precision manufacturing and assembly. Each component is manufactured to tight tolerances, ensuring geometric accuracy and surface finish. The raceways are ground and honed to achieve optimal surface roughness for effective lubrication while minimizing friction. Assembly involves sophisticated measuring equipment to verify dimensional accuracy, followed by precise adjustments for correct preload or clearance. The assembly sequence ensures correct positioning of each row, directly affecting load distribution capabilities. Completed bearings undergo testing for rotational accuracy, noise levels, and torque characteristics.

What maintenance practices ensure optimal lifespan of Four row tapered roller bearings 3806/530?

Lubrication Requirements and Schedules

Proper lubrication is fundamental to maximizing service life. These bearings require carefully selected lubricants matching their operational conditions, including temperature ranges, speeds, and loading patterns. For high-temperature environments, synthetic oils or greases with appropriate viscosity and thermal stability maintain adequate lubrication between rollers and raceways. The lubrication schedule must be developed based on application parameters, with more frequent intervals for bearings under heavy loads or in contaminated environments. Regular analysis of lubricant samples can detect early signs of wear or contamination, allowing timely intervention. Automated lubrication systems can provide precise quantities at optimal intervals.

Monitoring and Condition Assessment Techniques

Robust monitoring and condition assessment are crucial. Vibration analysis can detect subtle changes in bearing condition before noise or temperature increases become apparent. Specialized equipment can identify frequency signatures associated with damage, cage deterioration, or lubrication issues. Temperature monitoring provides another indicator of bearing health. Advanced systems may incorporate oil debris analysis to detect metallic particles indicating wear. Ultrasonic monitoring can detect high-frequency sound waves associated with inadequate lubrication or early-stage defects.

Installation and Handling Best Practices

The operational lifespan heavily depends on proper installation and handling. Before installation, seating surfaces must be cleaned and inspected for damage. Appropriate tools, including bearing heaters for thermal mounting, must be used to prevent damage. When mounting, force should only be applied to the ring being fitted, never through rolling elements. Achieving correct preload or clearance is critical, often requiring specialized measurement tools. During maintenance, technicians should follow documented procedures for dismounting and reinspection to prevent damage. Even minor damage can initiate premature failure through accelerated fatigue mechanisms.

Conclusion

Four-row tapered roller bearings 3806/530 represent a sophisticated engineering solution for applications requiring exceptional load capacity and operational stability. Their unique four-row configuration enables them to handle complex loading patterns while maintaining precise alignment critical for industrial machinery performance. Understanding their design principles, application suitability, and maintenance requirements ensures optimal utilization and maximized service life in demanding operational environments.

Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
