RE Cross Roller Bearings: The Key to Superior Load Distribution in Heavy-Duty Systems
In today's demanding industrial landscape, precision and reliability in mechanical systems are non-negotiable requirements. RE Cross Roller Bearings have emerged as a crucial component in heavy-duty applications, offering superior load distribution capabilities and exceptional rotational accuracy. These specialized bearings represent a significant advancement in bearing technology, particularly for applications requiring high precision and substantial load-bearing capacity.

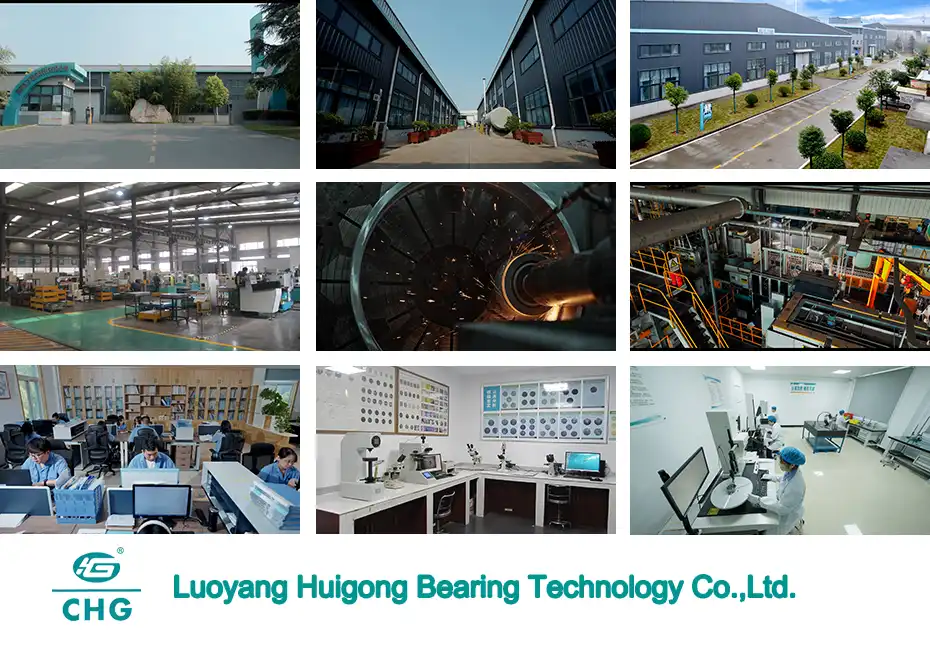

Luoyang Huigong Bearing Technology Co., Ltd. stands at the forefront of bearing innovation with an experienced R&D team providing technical guidance and customized solutions for various operating conditions. With 30 years of industry experience and partnerships with major enterprises, the company leverages advanced production equipment and testing instruments to deliver superior products. Having secured over 50 invention patents and certifications including ISO9001 quality management system and ISO14001 environmental management system, the company has been recognized as a 2024 quality benchmark enterprise. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
What Makes RE Cross Roller Bearings Unique in Heavy-Duty Applications?

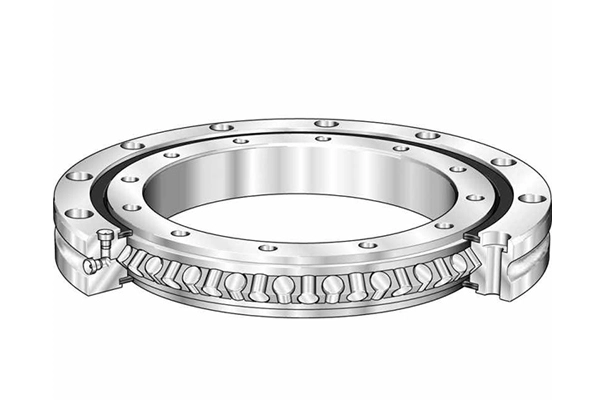

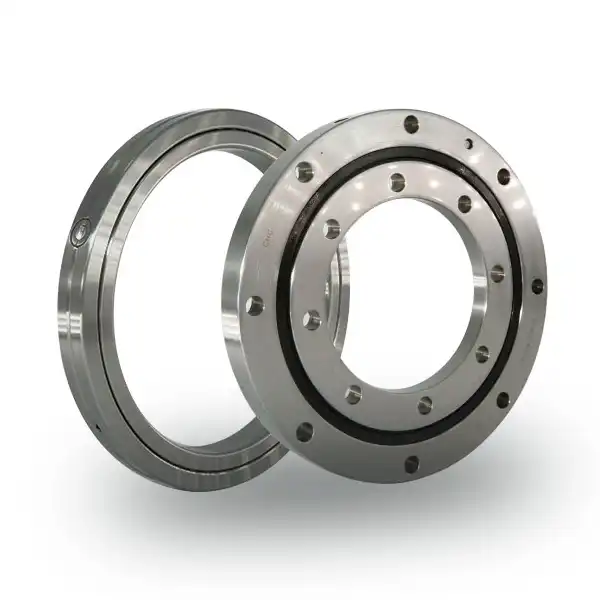

RE Cross Roller Bearings distinguish themselves through their innovative split inner ring design. The structure consists of a two-part inner ring and a single-piece outer ring, enabling superior load distribution and exceptional rotational precision. The bearing series accommodates a wide range of dimensions, with inner diameters spanning from 20mm to 600mm, outer diameters from 36mm to 700mm, and widths ranging from 8mm to 50mm.
The split inner ring design serves multiple crucial functions. First, it facilitates easier assembly and maintenance procedures. Second, it allows for optimal roller guidance and enhanced load distribution capabilities. The single-piece outer ring ensures structural integrity and maintains precise rotational accuracy, particularly beneficial in applications where outer ring rotation is primary.
Materials used in these bearings are carefully selected for durability and performance. The primary materials include Gcr15 and Gcr15SiMn, chosen for their excellent wear resistance and load-bearing capabilities. These materials undergo precise heat treatment processes to achieve optimal hardness and dimensional stability.
How Do RE Cross Roller Bearings Achieve Superior Precision Standards?
The achievement of exceptional precision in RE Cross Roller Bearings represents a culmination of advanced engineering principles, sophisticated manufacturing processes, and rigorous quality control measures. At the heart of their precision capabilities lies a comprehensive range of accuracy grades spanning from P6 to P2, each meticulously calibrated to meet specific application demands. The P6 grade serves as the foundation for general industrial applications where standard precision suffices, while P5 elevates the accuracy requirements to accommodate more demanding operational scenarios. The P4 grade pushes the boundaries further, delivering very high precision for specialized machinery where minimal deviation is acceptable. At the pinnacle stands the P2 grade, representing ultra-high precision for critical applications where absolute accuracy is paramount, such as in high-precision measuring equipment and advanced manufacturing systems. The attainment of these exacting standards involves a complex interplay of factors, including thermal management, material stability, and geometric precision, all of which must be carefully controlled throughout the manufacturing process. Advanced measurement and testing equipment, including precision roundness testers, surface roughness analyzers, and coordinate measuring machines, are employed to verify compliance with specified tolerances, ensuring each bearing meets its designated precision grade requirements.
The role of cage design in maintaining precision cannot be overstated, with both brass and nylon options offering distinct advantages in different operational contexts. Brass cages, renowned for their exceptional strength and thermal stability, excel in applications requiring robust performance under heavy loads and elevated temperatures. Their superior thermal conductivity aids in heat dissipation, contributing to dimensional stability and maintained precision during extended operation. Nylon cages, conversely, bring their own set of advantages to the table, including reduced friction coefficients, quieter operation, and excellent self-lubricating properties. The selection between these cage materials involves careful consideration of multiple factors, including operational speed requirements, ambient temperature conditions, lubrication methods, and specific loading patterns. The cage design itself incorporates sophisticated pocket geometries that optimize roller guidance while minimizing friction and wear, thereby contributing to the overall precision and longevity of the bearing assembly.
What Industries Benefit Most from RE Cross Roller Bearing Implementation?
The implementation of RE Cross Roller Bearings across various industrial sectors demonstrates their versatility and crucial role in advancing technological capabilities in heavy-duty applications. In the realm of industrial robotics, these bearings have revolutionized the precision and reliability of automated systems through their exceptional load distribution capabilities and rotational accuracy. The implementation in robotic applications extends beyond basic movement support, encompassing critical functions such as precise positioning in multi-axis robotic arms, support for complex interpolated movements, and enhanced load-bearing capacity for sophisticated handling operations. The bearings' ability to maintain precise positioning while handling varying loads and speeds has made them indispensable in advanced manufacturing cells, automated assembly lines, and high-precision processing equipment. Their contribution to the field of industrial robotics has enabled the development of more sophisticated automation solutions, pushing the boundaries of what's possible in terms of precision manufacturing and assembly processes.
The crane industry represents another sector where RE Cross Roller Bearings have demonstrated their exceptional value, particularly in applications requiring the handling of substantial loads with precise positional control. These bearings excel in supporting both radial and axial loads, crucial for crane operations where multi-directional forces are common. Their robust design and superior load distribution characteristics enable reliable performance under adverse conditions, including exposure to varying weather conditions and demanding operational schedules. The enhanced service life achieved through optimal load distribution and precise manufacturing tolerances translates into reduced maintenance requirements and improved operational efficiency for crane operators. The bearings' ability to maintain accurate positioning even under heavy loads has proven particularly valuable in applications such as port cranes, construction equipment, and specialized material handling systems, where precision and reliability directly impact operational productivity.
In the context of excavator systems, RE Cross Roller Bearings have established themselves as crucial components in ensuring reliable and precise operation under extremely challenging conditions. The bearings' robust construction and advanced sealing systems provide exceptional protection against contamination from dirt, debris, and moisture, common challenges in construction and mining environments. Their capacity to handle significant shock loads while maintaining operational precision has made them ideal for excavator applications, where sudden load variations and harsh operating conditions are routine. The implementation of these bearings in excavator systems has contributed to improved equipment reliability, reduced maintenance requirements, and enhanced operational precision, factors that directly impact project efficiency and equipment longevity. The bearings' ability to maintain performance under extreme conditions, combined with their extended service life characteristics, has made them a preferred choice for manufacturers of heavy construction equipment.
These diverse applications underscore the exceptional versatility and reliability of RE Cross Roller Bearings in addressing complex engineering challenges across multiple industries. The continued evolution of bearing technology, driven by advances in materials science and manufacturing processes, promises even greater capabilities in supporting future industrial developments. The optimization of bearing design, materials, and manufacturing processes continues to push the boundaries of what's possible in terms of precision, load capacity, and reliability in heavy-duty applications, establishing new standards for industrial equipment performance and capability.
With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
