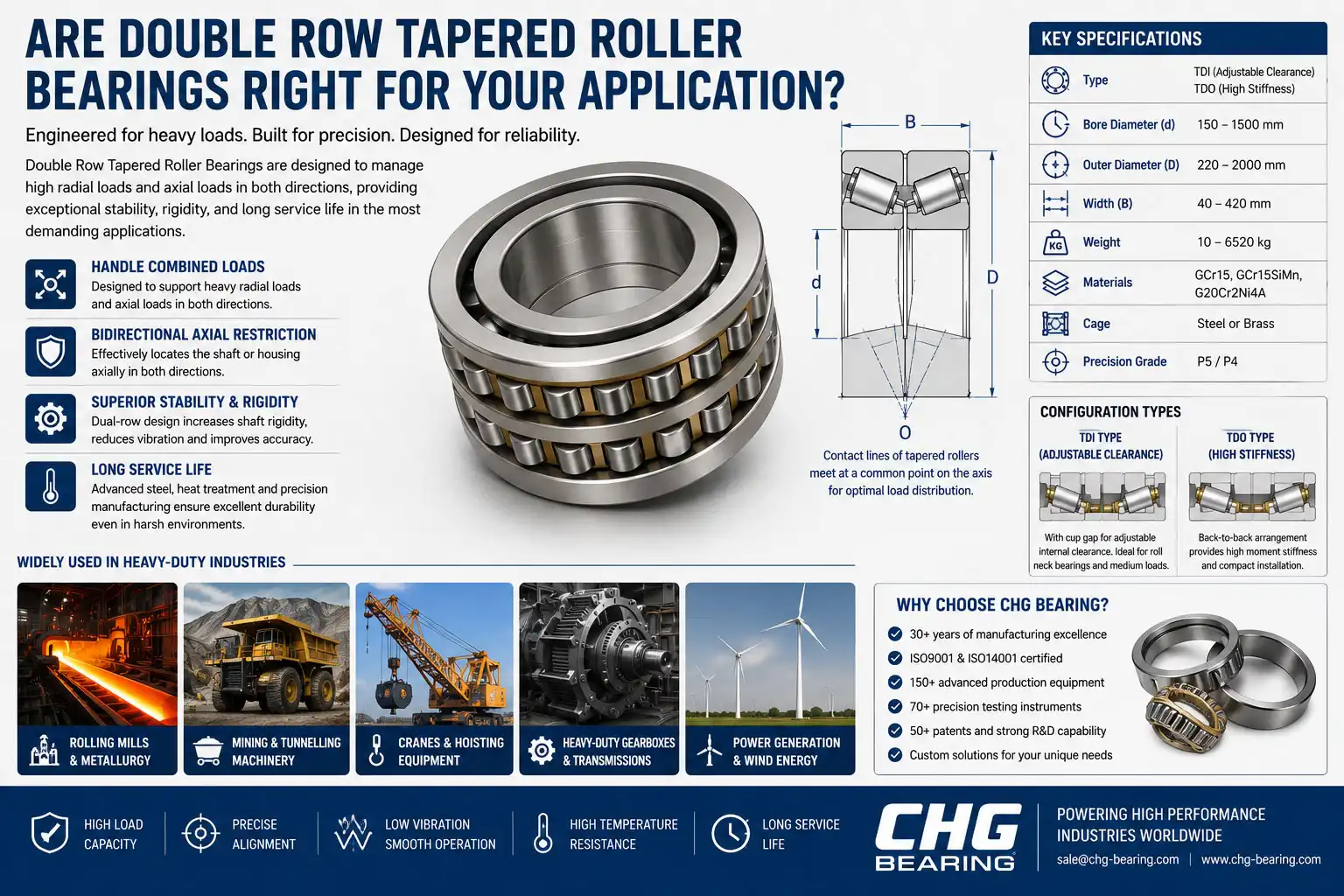

Are Double Row Tapered Roller Bearings Right for Your Application?

Selecting the right bearing is one of the most critical decisions in mechanical design. When your application demands reliable performance under combined radial and axial loads — think rolling mills, mining equipment, or heavy-duty gearboxes — the Double Row Tapered Roller Bearing stands out as an engineering solution worth serious consideration. Engineered to handle demanding conditions with precision and durability, this bearing type offers a unique combination of load capacity, rigidity, and bidirectional axial positioning. This article explores everything you need to know to determine whether a Double Row Tapered Roller Bearing is the right fit for your specific application.

What Loads Can a Double Row Tapered Roller Bearing Handle?

Combined Radial and Axial Load Capacity

The Double Row Tapered Roller Bearing is designed to handle mixed loads, which are cases where strong radial forces and axial (thrust) forces act at the same time. The two rows of tapered rollers are set up so that their contact lines meet at a single spot on the bearing axis. This makes for a design that effectively spreads both types of load across the rolling elements. This design makes sure that neither horizontal nor axial forces are too much for the bearing system. This evens out the load and gives the bearings longer life in tough places like rolling mills and raising equipment.

Bidirectional Axial Load Restriction

One of the best things about the Double Row Tapered Roller Bearing is that it can stop the shaft or hub from moving in either direction. When compared to single-row designs, which can only handle thrust in one direction, the double-row design works like a two-way bearing. This makes it very useful in precise machinery where the position of the shaft needs to stay the same even when the load is applied from different directions. Applications like digging machines and heavy gears gain a lot from this innate axial stability, which means they don't need as many extra fixing parts.

Heavy Radial Load Performance

The Double Row Tapered Roller Bearing works very well in situations where horizontal loads are the most important, like in roll neck bearings for steel mills. CHG's bearings are made of materials like GCr15, GCr15SiMn, and G20Cr2Ni4A and have an inner diameter range of 150 to 1500 mm. They are designed to handle high rotational pressures for long periods of time. Because tapered rollers have a bigger contact area than ball bearings, they can handle more steady and dynamic loads. This makes them the best choice for heavy-duty industrial equipment.

Table 1: Load Handling Comparison — Double Row Tapered Roller Bearing vs. Other Common Types

How Does a Double Row Tapered Roller Bearing Improve Stability?

Rigid Shaft Support and Alignment

How well the bearing holds the shaft against displacement and wobble is a big part of how stable spinning machinery is. The Double Row Tapered Roller Bearing makes the shaft more rigid because it has two rows of rollers that work together to prevent bent moments that a single-row bearing can't fully counter. The angular contact design spreads forces along the length of the roller, reducing stress clusters and stopping the tiny movements that make shaft positioning loosen over time. This stiffness immediately leads to smoother operation, less shaking, and fewer unexpected repair visits in machinery like industrial gears.

Adjustable Internal Clearance (TDI Configuration)

The TDI-type Double Row Tapered Roller Bearing from CHG Bearing has a cup gap that lets the internal spacing be fine-tuned. This is especially helpful in roll neck situations with middle loads, where the working space needs to be just right to avoid vibrations and heat buildup from too little or too much movement. Because the gap can be fine-tuned during installation and maintenance, machine workers can change how the bearing works to suit different temps, speeds, and loads. This makes the system more stable and predictable in the long run.

TDO Configuration for Back-to-Back Stiffness

The TDO-type Double Row Tapered Roller Bearing works the same as two single-row tapered roller bearings that are placed next to each other. This design gives the shaft a lot of moment stiffness, which means it can fight twisting forces. This is very important when the load is overhead or suspended. The TDO design makes fitting easier and takes up less room than using two separate bearings because it houses both rows in a single small unit. Because of this, it is the best choice when the length of the housing is limited, but the need for sturdiness is still high.

Double Row Tapered Roller Bearing Applications Across Industries

Rolling Mills and Metallurgical Equipment

The rolling mill industry represents one of the most demanding bearing environments, where Double Row Tapered Roller Bearings must endure continuous heavy loads, high temperatures, contamination from rolling lubricants, and frequent reversals of load direction. CHG Bearing's products, manufactured using high-grade GCr15SiMn and G20Cr2Ni4A steels, provide the fatigue resistance and surface hardness necessary to maintain consistent performance through millions of load cycles. The bearing's robust design ensures that roll neck assemblies maintain precise gap control between rolls, directly impacting the dimensional accuracy of finished metal products.

Mining and Tunnelling Machines

In mining and digging, bearings have to deal with the toughest conditions possible, including high shock loads, gritty contamination, and heavy-duty work all the time with limited entry for upkeep. The Double Row Tapered Roller Bearing can hold a lot of horizontal and axial load, and it can be built in two different ways: sealed or strengthened. This makes it perfect for crusher drives, conveyor head pulleys, and tunnel boring machine (TBM) main bearings. CHG offers a wide range of sizes, from an inner diameter of up to 1500 mm. This means that even the biggest TBM uses can be fitted with the right bearings.

Gearboxes and Hoisting Equipment

For industrial gearboxes to work properly, the bearings need to be able to keep the shaft in the exact same place even when rotational loads and axial loads are applied. The Double Row Tapered Roller Bearing naturally handles these combined loads, which is why it is a standard choice in heavy-duty gearbox designs for main shafts of wind turbines, cranes, and hoists. Because it can be used as a finding bearing, it eliminates the need for separate thrust washers or other axial constraint mechanisms. This makes designing and putting together gearboxes easier while also increasing durability and lowering the number of parts needed.

How to Choose the Right Double Row Tapered Roller Bearing for Maximum Service Life?

Selecting the Correct Configuration: TDO vs. TDI

When ordering a Double Row Tapered Roller Bearing, the first choice is between the TDO and TDI versions. When you need high moment stiffness and don't need to change the clearance very often, TDO bearings are the best choice. An example of this would be heavily loaded shaft ends with set housings. Because the cup gap on TDI bearings can be adjusted, they are better for roll neck assemblies and other uses where the internal clearance needs to be set and then changed every so often to account for wear or heat expansion. The engineering team at CHG Bearing can help you figure out which setup fits your application's load range and size restrictions the best.

Material and Size Specification

CHG Bearing has Double Row Tapered Roller Bearings with inner sizes from 150 mm to 1500 mm, which are suitable for most commercial uses. The working setting affects the choice of material: A high-carbon chromium steel called GCr15 is flexible and affordable, and it can be used in most normal situations. GCr15SiMn is better at hardening and is better for larger cross-section bearings. And G20Cr2Ni4A is a case-hardening steel that is better at impact toughness for shock-loaded applications like mining crushers. For the manufacturer's estimated service life to be met, it is important to match the material's specifications to its working conditions.

Lubrication, Sealing, and Maintenance Considerations

Even the most well-specified Double Row Tapered Roller Bearing will underperform if lubrication is inadequate. The correct lubricant type (grease or oil), viscosity grade, and relubrication interval must be determined based on operating speed, temperature, and load. Proper sealing against contaminants — especially in mining and outdoor environments — is equally critical. CHG Bearing's technical support team can assist in specifying appropriate sealing arrangements and lubrication schedules. Regular condition monitoring, including vibration analysis and lubricant sampling, allows maintenance teams to detect early signs of bearing wear before failure occurs.

Table 2: CHG Double Row Tapered Roller Bearing — Key Specifications at a Glance

Conclusion

It has been shown that the Double Row Tapered Roller Bearing works well in situations where steady performance is needed under big loads. CHG Bearing's goods are used in rolling mills, mining tools, gears, and more. They have flexible TDO and TDI configurations, reversible axial positioning, and a size range that goes from 150 to 1500 mm. With more than 25 years of experience making things and strict quality checks, CHG Bearing gives your operations the fine engineering and sturdiness they need. If you choose the right bearing today, your tools will work better tomorrow, break down less often, and cost less to maintain.

FAQ

Q1: What is the main difference between a TDO and a TDI Double Row Tapered Roller Bearing?

A TDO bearing performs like two single-row tapered roller bearings mounted back-to-back, offering high moment rigidity for fixed-clearance applications. A TDI bearing includes a cup spacer that allows internal clearance to be adjusted, making it the preferred choice for roll neck applications where precise clearance control is needed to account for thermal changes and wear over time.

Q2: What size range does CHG Bearing offer for Double Row Tapered Roller Bearings?

CHG Bearing manufactures Double Row Tapered Roller Bearings with inner diameters ranging from 150 mm to 1500 mm, covering a wide spectrum of industrial applications from medium-duty gearboxes to very large rolling mill and tunnelling machine assemblies.

Q3: Can a Double Row Tapered Roller Bearing handle axial loads in both directions?

Yes. The double-row configuration restricts axial displacement of the shaft or housing in both directions, functioning as a bidirectional locating bearing. This eliminates the need for additional thrust-bearing components in many applications and simplifies overall bearing arrangement design.

Q4: Which materials are used in CHG Bearing's Double Row Tapered Roller Bearings?

CHG Bearing uses three primary steel grades: GCr15 for standard applications, GCr15SiMn for larger cross-section bearings requiring improved hardenability, and G20Cr2Ni4A (case-hardening steel) for shock-loaded environments such as mining and crushing equipment. Material selection should match the specific load and environmental conditions of the application.

Q5: What industries most commonly use Double Row Tapered Roller Bearings?

Double Row Tapered Roller Bearings are widely used in rolling mills, heavy industrial gearboxes, hoisting and crane equipment, mining machinery, and tunnelling machines. Any application combining significant radial loads with axial thrust requirements — especially where shaft positioning accuracy is critical — is a strong candidate for this bearing type.

Partner with CHG Bearing — Get in Touch Today

If you are evaluating Double Row Tapered Roller Bearings for your next project or replacement cycle, CHG Bearing is ready to help. Founded in 1998 and headquartered in Luoyang's Science and Technology Park, we operate a 39,330 m² facility with over 150 sets of production equipment and 70+ testing instruments, including CMMs, roundness meters, and ultrasonic testing systems. Our annual capacity includes 30,000 sets of long-life mill bearings. Whether you need standard sizes or custom-engineered solutions, our team delivers precision, reliability, and service. Contact us today at sale@chg-bearing.com and let our engineering team recommend the optimal bearing for your application.

References

1. Harris, T. A., & Kotzalas, M. N. (2007). Rolling Bearing Analysis: Essential Concepts of Bearing Technology (5th ed.). CRC Press.

2. Eschmann, P., Hasbargen, L., & Weigand, K. (1985). Ball and Roller Bearings: Theory, Design and Application. John Wiley & Sons.

3. SKF Group. (2018). SKF Rolling Bearings Catalogue (PUB BU/P1 17000/2 EN). SKF AB.

4. Timken Company. (2015). Timken Tapered Roller Bearing Catalogue (5701). The Timken Company.

5. ISO 355:2019. Rolling Bearings — Tapered Roller Bearings — Boundary Dimensions and Series Designations. International Organisation for Standardisation.

6. Zaretsky, E. V. (Ed.). (1992). STLE Life Factors for Rolling Bearings (SP-34). Society of Tribologists and Lubrication Engineers.
