How Do Spindle Bearings Work?

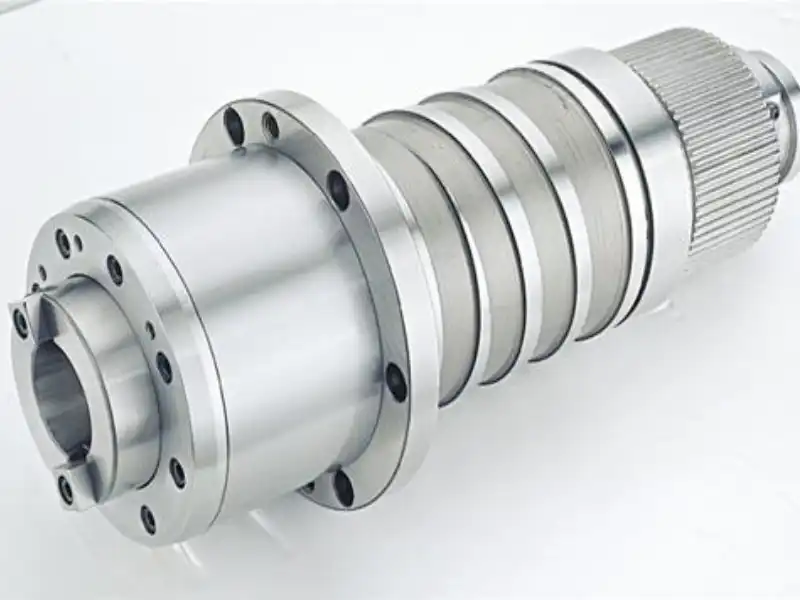

Spindle bearings are crucial components in modern machinery, serving as the foundation for precise rotational movement in various industrial applications. These specialized bearings are engineered to provide exceptional accuracy, high-speed capability, and superior rigidity, making them essential in machine tools, manufacturing equipment, and precision instruments. Understanding their working principles, applications, and maintenance requirements is vital for engineers and technicians working with high-precision machinery.

What Are the Key Components and Design Features of Spindle Bearings?

Fundamental Structure and Materials

Spindle bearings represent a marvel of precision engineering, incorporating multiple components designed to work in perfect harmony. The basic structure includes inner and outer rings manufactured from high-grade bearing steel, typically AISI 52100 or equivalent materials. These rings are precision-ground to achieve superior surface finish and geometric accuracy. The rolling elements, whether balls or rollers, are made from carefully selected materials and manufactured to extremely tight tolerances. Modern spindle bearings often incorporate ceramic rolling elements, particularly silicon nitride (Si3N4), which offers advantages such as lower density, higher hardness, and better electrical insulation properties compared to traditional steel elements.

Advanced Design Features

The design of spindle bearings incorporates several sophisticated features that distinguish them from conventional bearings. One crucial aspect is the contact angle design, which determines the bearing's ability to handle both radial and axial loads. High-precision spindle bearings typically feature optimized contact angles ranging from 15 to 25 degrees, providing an ideal balance between load capacity and speed capability. The cage design is another critical feature, with manufacturers employing materials like phenolic resin, PEEK, or brass to ensure proper rolling element guidance and lubrication distribution. Advanced spindle bearings also incorporate specialized sealing solutions, including non-contact labyrinth seals or shield arrangements, to prevent contamination while minimizing friction.

Precision Manufacturing Techniques

The manufacturing process of spindle bearings demands exceptional attention to detail and utilizes state-of-the-art production methods. The rings undergo multiple stages of heat treatment and grinding operations to achieve the required hardness and dimensional accuracy. Surface finish parameters are controlled to sub-micron levels, with modern spindle bearings featuring raceway roughness values often below 0.1 μm Ra. The rolling elements are manufactured using specialized grinding and polishing techniques to achieve near-perfect sphericity or cylindricity. Quality control measures include 100% inspection of critical dimensions, surface finish, and running accuracy, often utilizing advanced measurement equipment such as coordinate measuring machines and roundness testers.

How Do Different Types of Spindle Bearings Compare in Performance?

Angular Contact Ball Bearings

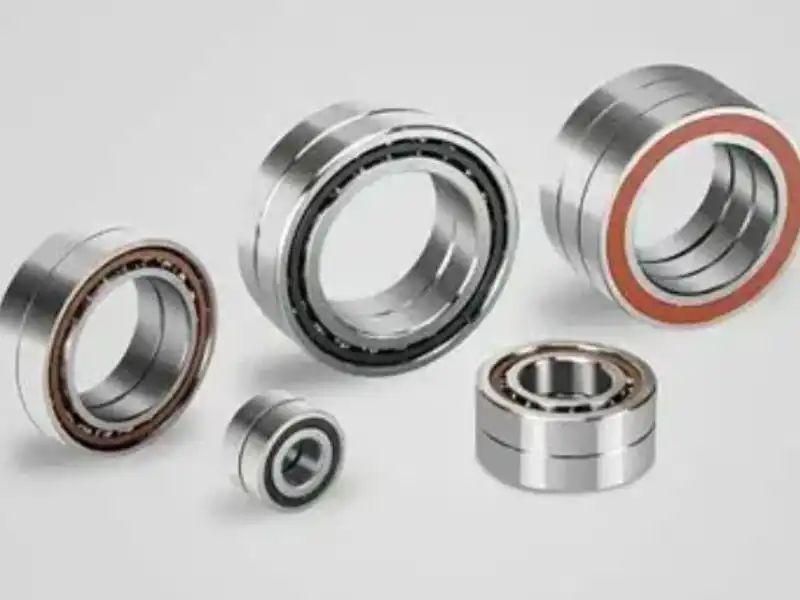

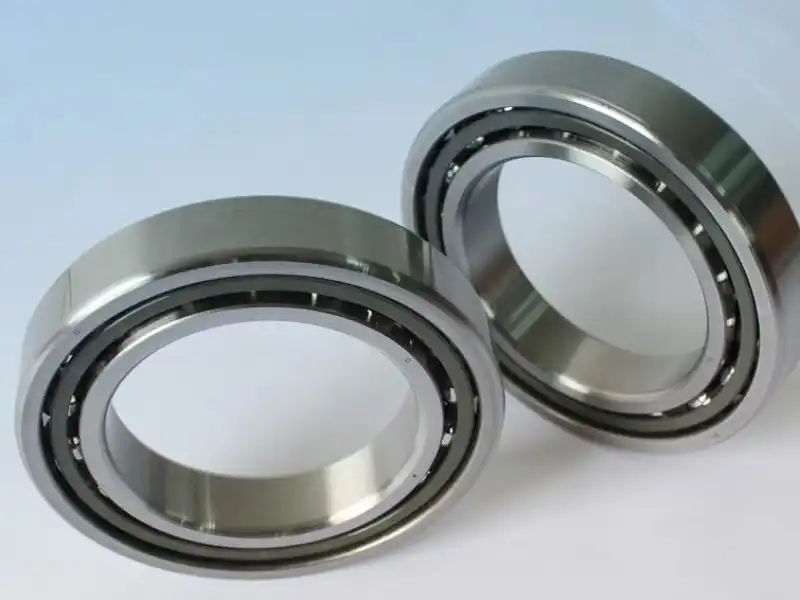

Angular contact ball bearings are among the most widely used types of spindle bearings, particularly in high-speed applications. These bearings excel in situations requiring both radial and axial load capacity while maintaining precise shaft positioning. The design allows for preload adjustment, which is crucial for achieving optimal performance in different operating conditions. Modern angular contact spindle bearings can achieve speeds exceeding 30,000 RPM while maintaining thermal stability and precision. The performance characteristics are further enhanced by sophisticated cage designs and optimized internal geometry. Manufacturers often offer these bearings in matched sets with specific preload values tailored to application requirements, ensuring optimal performance in terms of rigidity and running accuracy.

Cylindrical Roller Bearings

Cylindrical roller spindle bearings offer superior radial load capacity and stiffness compared to ball bearings, making them ideal for heavy-duty machining operations. These bearings feature precision-manufactured rollers with optimized profiles to prevent edge stress concentrations and ensure uniform load distribution. Advanced designs incorporate features such as logarithmic roller profiles and specialized cage materials to enhance high-speed capability. The performance of cylindrical roller spindle bearings is particularly notable in applications requiring high radial stiffness, such as heavy-duty milling operations, where they can maintain precision even under significant cutting forces. Modern designs can achieve speeds up to 20,000 RPM while handling substantial radial loads.

Hybrid Ceramic Bearings

Hybrid ceramic spindle bearings, featuring ceramic rolling elements and steel rings, represent the cutting edge of bearing technology. These bearings offer exceptional performance characteristics, including higher speed capability, improved thermal stability, and extended service life compared to all-steel bearings. The lower density of ceramic balls results in reduced centrifugal forces at high speeds, allowing for improved rotational accuracy and reduced heat generation. Hybrid spindle bearings also demonstrate superior performance in poorly lubricated conditions due to the ceramic elements' inherent wear resistance and lower friction characteristics. These bearings can typically operate at speeds 20-30% higher than conventional steel bearings while maintaining better dimensional stability.

What Are the Critical Maintenance Requirements for Spindle Bearings?

​​​​​​​

Lubrication Management

Proper lubrication is paramount for the optimal performance and longevity of spindle bearings. The selection of lubricant type and quantity must be carefully considered based on operating conditions, speed requirements, and environmental factors. Modern spindle bearings often utilize specialized greases formulated with synthetic base oils and advanced thickener systems, providing excellent performance across a wide temperature range. The lubrication system must be designed to ensure adequate oil film formation while preventing over-lubrication, which can lead to excessive heat generation. Regular monitoring of lubricant condition, including periodic analysis of oil samples in oil-lubricated systems, helps maintain optimal bearing performance and predict potential issues before they lead to failure.

Temperature and Vibration Monitoring

Implementing comprehensive condition monitoring programs is essential for maintaining spindle bearing performance. Temperature monitoring using integrated sensors or thermal imaging equipment helps detect abnormal operating conditions that could indicate bearing problems. Regular vibration analysis using sophisticated monitoring equipment can identify early signs of bearing wear, misalignment, or other issues before they develop into serious problems. Modern monitoring systems often incorporate real-time data analysis capabilities, allowing for predictive maintenance strategies that optimize bearing life while minimizing unexpected downtime. The implementation of proper monitoring protocols has been shown to extend bearing life by up to 50% compared to traditional maintenance approaches.

Installation and Handling Procedures

The success of spindle bearing operations heavily depends on proper installation and handling procedures. Clean room conditions are often necessary during installation to prevent contamination. Special tools and equipment, such as induction heaters and hydraulic nuts, ensure proper mounting without damaging the bearing components. The measurement and adjustment of bearing preload during installation is critical, as incorrect preload can significantly impact bearing performance and life. Regular inspection of mounting surfaces, housing conditions, and shaft alignments helps maintain optimal operating conditions. Training maintenance personnel in proper handling and installation techniques is essential for ensuring consistent bearing performance and reliability.

Conclusion

Spindle bearings represent a critical technology in modern manufacturing and precision engineering applications. Their sophisticated design, incorporating advanced materials and precision manufacturing techniques, enables exceptional performance in terms of speed, accuracy, and reliability. Understanding their proper selection, maintenance, and operating requirements is essential for achieving optimal performance and longevity in industrial applications. The continuous evolution of spindle bearing technology, particularly in areas such as hybrid ceramics and intelligent monitoring systems, promises even greater capabilities for future applications.
