How is a Double Direction Thrust ball Bearing Different from a Single Direction Thrust Bearing?

Thrust ball bearings are critical components in many mechanical systems, designed to handle axial loads. The key distinction between single and double direction thrust ball bearings lies in their load-bearing capabilities and structural design. While single direction thrust bearings can handle axial loads in one direction only, double direction thrust ball bearings are engineered to support axial loads from both directions simultaneously. This fundamental difference influences their applications, performance characteristics, and suitability for various industrial needs.

What are the main structural differences between single and double direction thrust ball bearings?

Design Comparison and Key Components

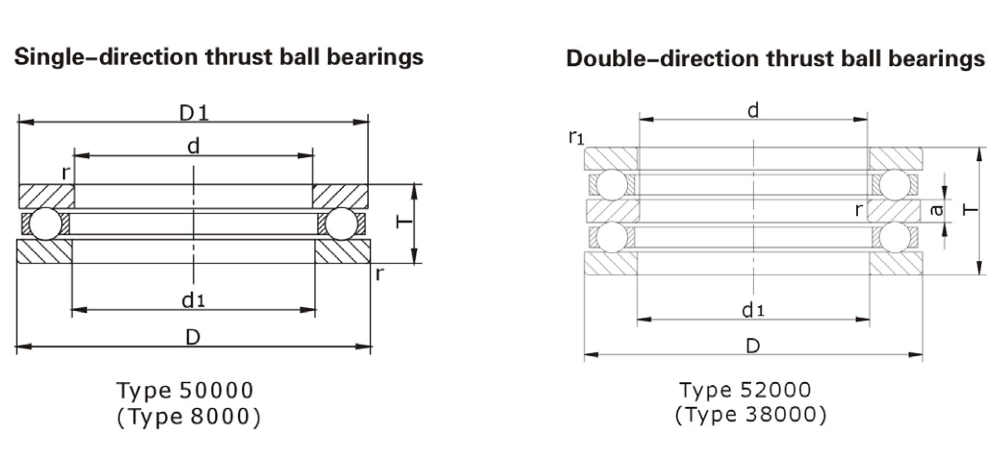

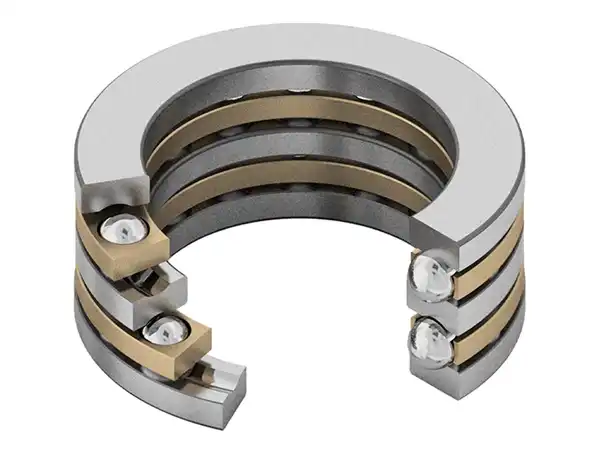

Single direction thrust ball bearings consist of three main components: a shaft washer, a housing washer, and ball elements positioned between them. This simple design allows them to effectively handle axial loads in one direction only. In contrast, Double Direction Thrust Ball Bearings feature an additional washer, creating a configuration with two raceways. This structural enhancement enables them to support axial loads from both directions simultaneously. The ball elements in double direction bearings are typically arranged in two rows, with each row designed to handle forces from opposite directions. This dual-row configuration provides greater stability and load-bearing capacity compared to single direction alternatives, making Double Direction Thrust Ball Bearings ideal for applications where bidirectional axial forces are present.

Material and Manufacturing Considerations

The materials used in Double Direction Thrust Ball Bearings require superior quality and precision manufacturing due to their complex load-bearing requirements. These bearings often utilize high-grade chrome steel or stainless steel for the raceways and balls, ensuring durability under bidirectional stress. The manufacturing process involves precision grinding and heat treatment to achieve optimal hardness and surface finish. Unlike single direction bearings, Double Direction Thrust Ball Bearings require tighter tolerances during production to maintain proper ball tracking and load distribution when forces reverse direction. The housing and shaft washers are designed with symmetrical raceways to provide consistent performance regardless of the load direction, a feature not necessary in single direction variants.

Clearance and Preload Requirements

Double Direction Thrust Ball Bearings have unique clearance specifications that differ significantly from single direction bearings. While single direction bearings typically operate with a set clearance in one direction, Double Direction Thrust Ball Bearings must maintain balanced clearance or preload in both directions. This balancing act is crucial for proper functioning, as excessive clearance can lead to vibration and reduced lifespan when the load direction changes. Engineers must carefully calculate the optimal preload for Double Direction Thrust Ball Bearings to ensure they can handle reversing loads without compromising performance. Additionally, the mounting arrangements for these bearings often include special provisions to maintain this delicate balance throughout various operating conditions, requiring more sophisticated housing designs than those used for single direction bearings.

How do double direction thrust ball bearings enhance machinery performance?

Load Capacity and Operational Versatility

Double Direction Thrust Ball Bearings significantly enhance machinery performance through their superior bidirectional load-handling capabilities. Unlike single direction bearings that can only support axial loads in one direction, Double Direction Thrust Ball Bearings effectively manage forces from both directions, eliminating the need for additional bearing arrangements in applications with alternating loads. This versatility translates to more compact machine designs and reduced component count. For instance, in vertical pump applications, a single Double Direction Thrust Ball Bearing can replace two single direction bearings mounted back-to-back, resulting in simplified assembly and maintenance procedures. The enhanced load capacity of these bearings also allows machines to handle higher operational stresses and sudden load reversals without component failure, extending equipment lifespan and reducing downtime in critical industrial applications.

Rotational Speed and Friction Characteristics

When it comes to rotational performance, Double Direction Thrust Ball Bearings offer distinct advantages over their single direction counterparts in certain applications. These bearings are engineered with optimized ball-to-raceway contact geometry to minimize friction during bidirectional operation. The balanced design of Double Direction Thrust Ball Bearings helps distribute lubricant more effectively across both load-bearing surfaces, reducing heat generation during high-speed operation with alternating loads. This improved thermal management allows machines equipped with Double Direction Thrust Ball Bearings to maintain stable operating temperatures even under challenging conditions. Additionally, the symmetrical design of these bearings contributes to smoother rotation and reduced vibration when load directions change, a critical factor in precision machinery where consistent performance is essential regardless of axial force direction.

Space Efficiency and Design Simplification

One of the most significant ways Double Direction Thrust Ball Bearings enhance machinery performance is through space optimization and design simplification. By consolidating bidirectional thrust handling into a single component, these bearings enable engineers to create more compact machine designs without compromising load capacity. In applications where space is at a premium, such as automotive transmissions or industrial gearboxes, the use of Double Direction Thrust Ball Bearings can reduce the overall size and weight of the assembly. This space efficiency not only improves the power-to-weight ratio of machinery but also simplifies manufacturing and assembly processes. Furthermore, the consolidated design of Double Direction Thrust Ball Bearings reduces the number of potential failure points in a system, enhancing reliability while simplifying maintenance procedures. For equipment designers, these bearings offer valuable flexibility, allowing them to address complex axial load requirements without resorting to elaborate bearing arrangements that would increase cost and complexity.

Where are double direction thrust ball bearings most commonly applied?

Heavy Industrial Equipment Applications

Double Direction Thrust Ball Bearings find extensive use in heavy industrial equipment where bidirectional axial loads are common. In large industrial gearboxes, these bearings support helical gears that generate significant axial forces in both directions during operation. Mining equipment, such as crushers and grinders, relies on Double Direction Thrust Ball Bearings to handle the substantial and often unpredictable axial loads that occur during material processing. Heavy-duty cranes and lifting equipment also benefit from these bearings, as they must withstand variable directional loads depending on the lifting operation. Marine propulsion systems represent another critical application, where Double Direction Thrust Ball Bearings support propeller shafts against the thrust generated by forward and reverse propulsion. The robustness of Double Direction Thrust Ball Bearings makes them ideal for these demanding environments, where equipment reliability is paramount and downtime costs are substantial.

Precision Machinery and Motion Control Systems

In the realm of precision machinery, Double Direction Thrust Ball Bearings play a crucial role in maintaining accuracy and smooth operation. CNC machine tools often incorporate these bearings in their spindle assemblies to handle the varying axial loads generated during different machining operations. Robotics and automation systems utilize Double Direction Thrust Ball Bearings in rotary joints and actuators where movement can create axial forces in multiple directions. In semiconductor manufacturing equipment, these bearings support precision positioning stages that require exceptional stability and smoothness while moving in various directions. Optical equipment and precision instruments also benefit from Double Direction Thrust Ball Bearings, as they provide the necessary stability for precise optical alignment while accommodating thermal expansion effects that can create bidirectional axial forces. The ability of Double Direction Thrust Ball Bearings to maintain precise positioning under variable load conditions makes them invaluable in applications where accuracy directly impacts product quality.

Automotive and Transportation Systems

The automotive and transportation sectors represent significant application areas for Double Direction Thrust Ball Bearings. In vehicle transmissions, these bearings support gear systems that experience thrust loads in alternating directions during acceleration and deceleration. Wheel hub assemblies in heavy commercial vehicles often incorporate Double Direction Thrust Ball Bearings to handle the complex loading conditions experienced during cornering and braking. Railway traction systems rely on these bearings to support axial loads generated by the electric motors and gearboxes that drive the wheels. Aircraft actuators and control surfaces utilize Double Direction Thrust Ball Bearings to handle the aerodynamic forces that can push components in varying directions during flight. Even in newer electric vehicles, Double Direction Thrust Ball Bearings find applications in electric motor assemblies and reduction gearboxes, where their ability to handle bidirectional loads in a compact package supports the industry's push toward lighter, more efficient designs. The reliability and load-handling versatility of Double Direction Thrust Ball Bearings make them essential components in transportation systems where safety and durability are paramount concerns.

Conclusion

Double direction thrust ball bearings differ fundamentally from single direction variants through their ability to handle axial loads from both directions, enhanced structural design, and specialized material requirements. This bidirectional capability offers significant advantages in operational versatility, space efficiency, and application flexibility across numerous industries. While they may require more precise manufacturing and installation, their ability to simplify machinery design and improve performance makes them invaluable components in modern mechanical systems.
