What is the Load Capacity of Spherical Roller Bearings?
Spherical roller bearings are critical components in various industrial applications, designed to handle significant loads while accommodating misalignment. The load capacity of these bearings is one of their most essential characteristics, determining their suitability for different operational scenarios. These bearings feature two rows of rollers operating on a spherical outer raceway, allowing them to handle substantial radial loads and moderate axial loads simultaneously, making them invaluable in demanding industrial environments where equipment might experience shaft deflection or misalignment.
What factors influence the load capacity of spherical roller bearings?
Design Characteristics Impact on Load Capacity

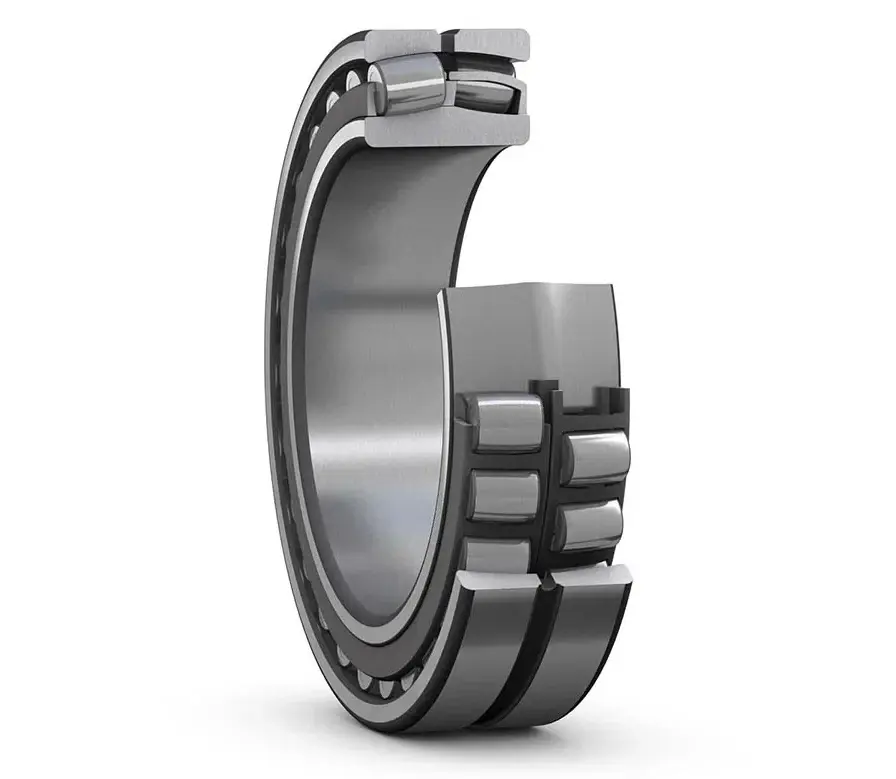

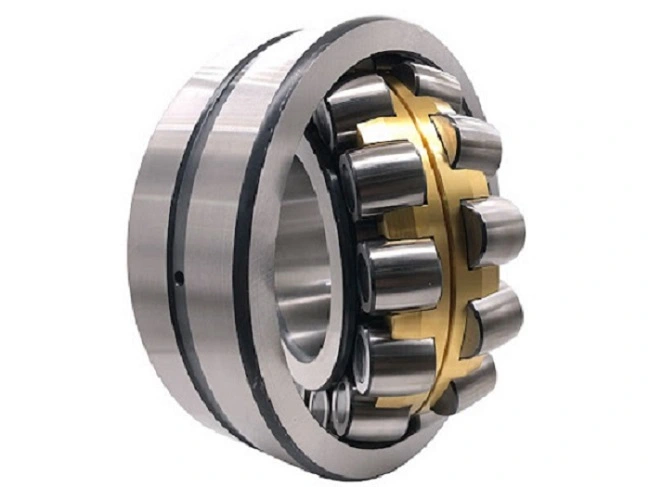

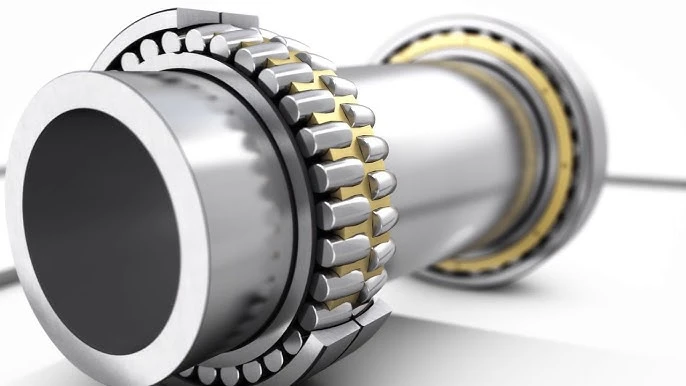

The design of spherical roller bearings significantly impacts their load-bearing abilities. Their symmetrical rollers arranged in two rows with a common sphered raceway in the outer ring create a self-aligning capability while maintaining load capacity. The barrel-shaped rollers provide more contact area with the raceways compared to other bearing types, distributing the load across a larger surface area. This design enables them to withstand heavy radial loads that would cause premature failure in other bearing types. While spherical roller bearings can handle axial loads, their radial capacity is much greater, making proper assessment of expected load directions essential when selecting these bearings.
Material Selection and Its Effect on Load Rating
Materials used in manufacturing spherical roller bearings play a pivotal role in determining their load capacity. High-quality chrome steel, typically through-hardened, serves as the standard material for most spherical roller bearings. For extreme conditions, specialized materials like carburized steel or ceramic-coated components might enhance load capacity further. The metallurgical properties, including hardness, toughness, and fatigue resistance, directly influence how the bearing responds under load. Advanced heat treatment processes applied during manufacturing also contribute to improving material properties, enhancing the bearing's ability to withstand higher loads. Bearings manufactured with premium materials and subjected to rigorous heat treatment can handle loads up to 30% higher than standard variants.
Lubrication's Role in Maintaining Load Capacity
Proper lubrication fundamentally affects the actual load capacity that spherical roller bearings can maintain throughout their service life. Even the most robustly designed bearings will fail prematurely if inadequately lubricated under heavy loads. The lubricant forms a critical film between the rolling elements and raceways, preventing metal-to-metal contact that would result in rapid wear and heat generation. Under high loads, this lubrication film becomes even more crucial as contact pressure increases significantly. The viscosity and additives must be carefully selected based on the specific load conditions. For bearings under particularly heavy loads, specialized high-pressure additives can provide additional protection. Regular relubrication schedules must be established to ensure that spherical roller bearings maintain their designed load capacity throughout their operational lifespan.
How do you calculate the load capacity of spherical roller bearings?
Understanding Static and Dynamic Load Ratings
Static and dynamic load ratings represent two distinct ways to evaluate the load capacity of spherical roller bearings. The static load rating (C0) refers to the maximum load the bearing can withstand while stationary or under very slow rotation without suffering permanent deformation. This rating is particularly important for bearings that experience heavy loads during rest periods. The dynamic load rating (C) indicates the load at which the bearing achieves a nominal life of one million revolutions, more relevant for bearings operating continuously under normal speeds. Manufacturers determine these ratings through extensive testing and standardized calculation methods. When evaluating spherical roller bearings, engineers must consider both ratings, as many industrial applications involve periods of both movement and stationary loading.
Calculation Methods for Different Loading Conditions
Calculating the effective load capacity under varying conditions requires consideration of multiple factors. For pure radial loading, the calculation is relatively straightforward. However, most applications present combined loading scenarios, where both radial and axial forces act simultaneously. In such cases, an equivalent load formula must be applied: P = XFr + YFa, where P represents the equivalent dynamic load, Fr and Fa are the actual radial and axial loads, and X and Y are factors determined by the bearing's internal geometry and the ratio of axial to radial loading. These factors vary between different bearing series and sizes. For demanding applications, more complex calculations may be necessary, accounting for temperature variations, speed factors, and variable loading patterns. Modern engineering software can assist in performing these calculations accurately.
Life Expectancy Calculations Based on Load Capacity
The relationship between load capacity and operational lifespan follows well-established principles in bearing engineering. The standard calculation utilizes the formula L10 = (C/P)^p, where L10 represents the number of revolutions that 90% of identical bearings will complete before showing signs of fatigue, C is the dynamic load rating, P is the equivalent dynamic load, and p is an exponent (p = 10/3 for roller bearings). This formula demonstrates the exponential relationship between load and life—even a small reduction in load can significantly extend service life. Reducing the load by 20% can potentially double the operational lifespan. Additional factors such as lubrication conditions, contamination levels, and operating temperature modify this basic calculation. Understanding this relationship allows maintenance teams to make informed decisions about replacement intervals and helps designers select appropriate bearings with sufficient load capacity margins.
What are the limitations of load capacity in spherical roller bearings?
Temperature Effects on Maximum Load Capacity
Operating temperature significantly influences the maximum load capacity that spherical roller bearings can safely handle. As temperatures rise above standard conditions (typically 20-40°C), the material properties of both the bearing components and lubricant undergo changes that can compromise load-bearing performance. At elevated temperatures, the hardness and strength of the bearing steel decrease, reducing the maximum permissible contact stress. For bearings operating at temperatures exceeding 120°C, load capacity reductions of up to 40% may be necessary compared to their rated capacity at normal temperatures. Additionally, high temperatures affect lubricant viscosity, potentially leading to insufficient film thickness and accelerated wear under heavy loads. Manufacturers typically provide temperature-specific derating factors that engineers must apply when selecting bearings for high-temperature applications.
Speed Limitations Related to Load Capacity
The relationship between rotational speed and load capacity is a critical consideration for spherical roller bearings. As operating speeds increase, the centrifugal forces acting on the rolling elements grow exponentially, affecting contact angles and stress distribution. This necessitates a reduction in permissible load as speeds approach the bearing's rated limits. Manufacturers provide speed rating factors that adjust the dynamic load capacity based on the actual operating speed. For instance, a bearing operating at 75% of its limiting speed might only retain 80-85% of its rated load capacity. The cage design also influences this relationship, with certain cage materials and configurations providing better high-speed performance under load than others. Engineers must carefully balance these factors when selecting bearings for applications that combine high speeds with substantial loads.
Misalignment Tolerance vs. Load Capacity Trade-offs
While spherical roller bearings excel at accommodating misalignment compared to other bearing types, this capability comes with trade-offs regarding maximum load capacity. The self-aligning feature, which allows them to handle angular misalignment typically up to 1-2.5 degrees depending on the design, affects how loads are distributed across the rolling elements. As misalignment increases, the load distribution becomes increasingly uneven, with certain rollers bearing disproportionately higher loads than others. This uneven distribution effectively reduces the bearing's overall load capacity. A bearing operating at its maximum misalignment tolerance might experience a 15-25% reduction in effective load capacity due to this uneven loading pattern. Engineers must consider this trade-off when designing systems where both misalignment and heavy loads are expected.
Conclusion
Understanding the load capacity of spherical roller bearings is essential for ensuring optimal performance and longevity in industrial applications. The factors influencing capacity—from design and materials to lubrication and operating conditions—must be carefully considered when selecting these components. By properly calculating load requirements and recognizing the limitations imposed by temperature, speed, and misalignment, engineers can effectively utilize these versatile bearings while avoiding premature failures. With proper selection and maintenance, spherical roller bearings provide reliable performance under even the most demanding load conditions.
Luoyang Huigong Bearing Technology Co., Ltd. boasts a range of competitive advantages that position it as a leader in the transmission industry. Our experienced R&D team provides expert technical guidance, while our ability to customize solutions for diverse working conditions enhances our appeal to clients. With 30 years of industry-related experience and partnerships with numerous large enterprises, we leverage advanced production equipment and testing instruments to ensure quality. Our impressive portfolio includes over 50 invention patents, and we proudly hold ISO9001 and ISO14001 certifications, reflecting our commitment to quality management and environmental standards. Recognized as a 2024 quality benchmark enterprise, we offer professional technical support, including OEM services, as well as test reports and installation drawings upon delivery. Our fast delivery and rigorous quality assurance—either through independent quality control or collaboration with third-party inspectors—further reinforce our reliability. With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
References
1. Harris, T. A., & Kotzalas, M. N. (2023). Essential Concepts of Bearing Technology: Rolling Element Bearings, Sixth Edition. CRC Press.
2. SKF Group. (2022). Spherical Roller Bearings: Technical Handbook. SKF Publications.
3. Zaretsky, E. V. (2021). "Bearing Load Capacity and Life Prediction: Evolution of Modern Analysis Methods." Journal of Tribology, 143(7), 071901.
4. Wang, L., & Yang, J. (2023). "Load Distribution and Fatigue Life of Spherical Roller Bearings Under Combined Loads." Tribology International, 168, 107432.
5. NSK Ltd. (2024). Rolling Bearings: Load Capacity Engineering Guide. NSK Technical Publications.
6. Schaeffler Group. (2023). "Advanced Calculation Methods for Spherical Roller Bearings in Heavy Industry Applications." Industrial Engineering Review, 42(3), 215-229.
