How Do You Differentiate Between Different Types of Double Row Tapered Roller Bearings?

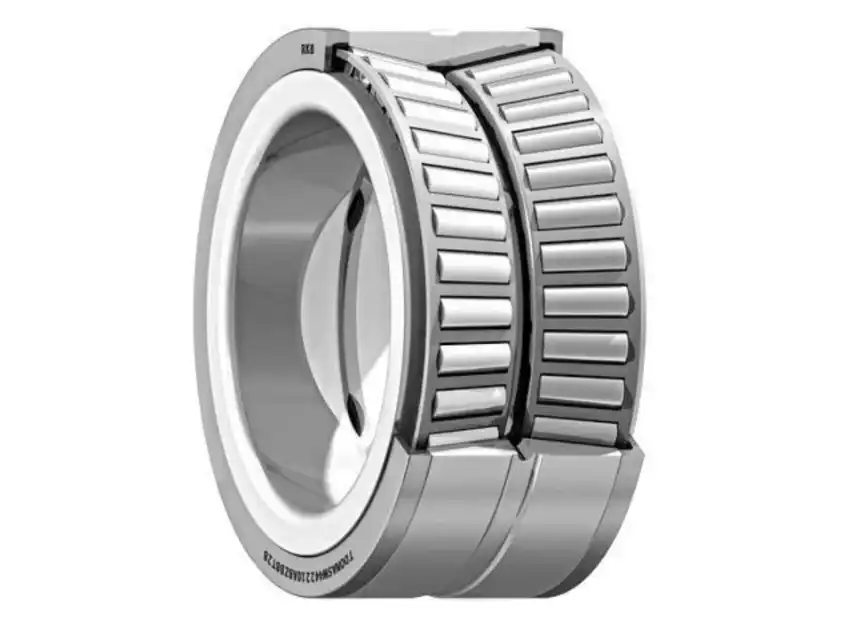

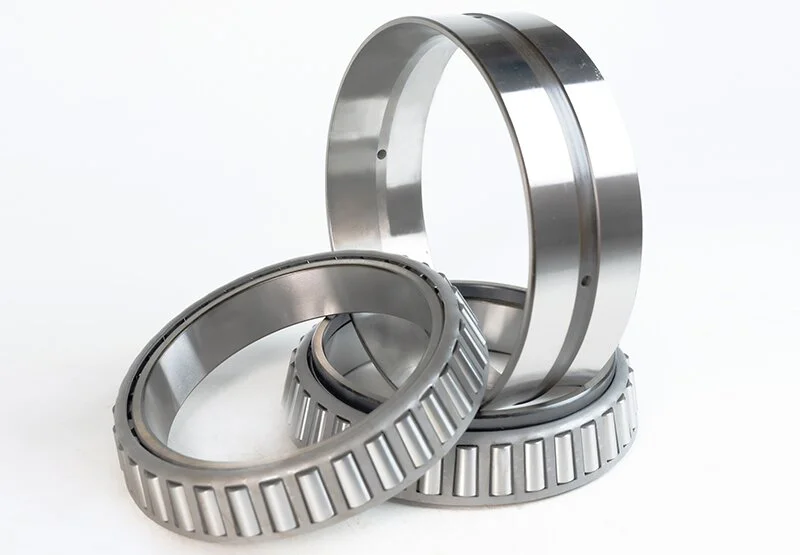

Double Row Tapered Roller Bearings are essential components in industrial applications, offering exceptional load capacity and durability under challenging conditions. These specialized bearings feature two rows of tapered rollers arranged in opposite directions, allowing them to handle both axial and radial loads simultaneously. Understanding the differences between types of Double Row Tapered Roller Bearings helps engineers and maintenance professionals make informed decisions when selecting components for specific applications.
What factors determine the load capacity of Double Row Tapered Roller Bearings?
How does the roller geometry affect load distribution?
The roller geometry significantly influences how a Double Row Tapered Roller Bearing distributes loads. The taper angle, roller length, and diameter all contribute to the bearing's performance. Bearings with optimized roller profiles achieve more uniform load distribution, enhancing load capacity and extending service life. The contact angle between rollers and raceways determines the ratio of axial to radial load capacity. Steeper angles handle higher axial loads, while shallower angles maximize radial load capacity. Engineers must evaluate application requirements when selecting roller geometries, as this directly impacts performance. Modern manufacturing techniques have enabled precision-engineered roller profiles that minimize stress concentrations and optimize contact patterns, resulting in Double Row Tapered Roller Bearings that withstand higher loads while maintaining stability.
What role does material composition play in bearing strength?
Material composition determines the load-bearing capacity, wear resistance, and durability of Double Row Tapered Roller Bearings. Quality bearings typically use through-hardened or case-hardened bearing steels like AISI 52100 for standard applications, while demanding environments may require specialty alloys. Bearings designed for extreme temperatures might incorporate heat-resistant steels to maintain stability at elevated temperatures. Steel purity directly influences fatigue life, with premium bearings featuring reduced inclusion content that minimizes potential failure sites. Surface treatments and coatings can enhance performance of Double Row Tapered Roller Bearings. Treatments like black oxide improve run-in characteristics and corrosion resistance, while specialized coatings increase surface hardness and wear resistance in abrasive environments.
How do cage designs impact bearing performance and reliability?
The cage in Double Row Tapered Roller Bearings maintains proper roller spacing and guidance, significantly influencing performance and reliability. Traditional pressed steel cages offer excellent strength-to-weight characteristics for standard applications, while machined brass cages provide superior stability for high-speed operations. Modern Double Row Tapered Roller Bearings may incorporate polymer cages in certain applications, offering reduced friction, improved lubrication retention, and weight reduction. The design of roller retention features within the cage also affects bearing performance, especially during installation and maintenance. Advanced cage designs include features that facilitate proper lubrication flow throughout the bearing assembly, ensuring critical surfaces receive adequate lubrication even under challenging conditions.
How can you identify the appropriate Double Row Tapered Roller Bearing for specific industrial applications?
What considerations are important for heavy machinery applications?
When selecting Double Row Tapered Roller Bearings for heavy machinery, load characteristics represent the foremost consideration. These bearings excel with combined loads, where both radial and axial forces act simultaneously. For equipment like mining excavators or heavy-duty gearboxes, bearings with larger contact angles may be preferable to handle substantial axial thrust loads. The operating environment introduces additional selection criteria, as contamination, moisture, and temperature extremes significantly impact bearing longevity. Double Row Tapered Roller Bearings for outdoor mining equipment require enhanced sealing solutions to prevent ingress of abrasive particles. Maintenance considerations also influence the choice between different bearing configurations. Applications with limited accessibility may benefit from designs with integrated seals and pre-lubrication capabilities.
What features distinguish Double Row Tapered Roller Bearings for high-speed applications?
High-speed applications require specialized features for Double Row Tapered Roller Bearings to maintain performance under elevated rotational velocities. Precision manufacturing becomes critical, as tighter tolerances help minimize imbalance and vibration. High-precision Double Row Tapered Roller Bearings feature enhanced surface finishes on raceways and rollers, reducing friction and heat generation during operation. Cage design is crucial for high-speed applications, with machined brass or advanced polymer cages often preferred due to their dimensional stability and reduced inertia. These specialized cages help maintain consistent roller guidance even under centrifugal forces, preventing skidding and ensuring uniform load distribution. The internal clearance specifications also require careful consideration, as thermal expansion during operation can alter effective clearance.
How do sealing solutions affect bearing selection for harsh environments?
In harsh environments, the sealing solution employed with Double Row Tapered Roller Bearings becomes as important as the bearing design itself. Effective seals prevent contaminant ingress while retaining lubricant, extending bearing service life. For extremely contaminated environments like mining or cement production, bearings may incorporate multiple sealing barriers, combining contact seals with labyrinth designs to create multi-stage protection. The seal material must align with specific environmental challenges. Double Row Tapered Roller Bearings in chemical processing might utilize fluoroelastomer seals for chemical resistance, while high-temperature applications could require specialty compounds or metallic sealing elements.
What maintenance practices maximize the service life of Double Row Tapered Roller Bearings?
How does proper installation impact bearing longevity?
Proper installation is fundamental for achieving optimal service life from Double Row Tapered Roller Bearings, with installation errors accounting for many premature failures. The mounting process requires meticulous attention, beginning with thorough cleaning and verification of dimensions against specified tolerances. When installing these bearings, technicians must apply force only to the ring being mounted, avoiding transmission of forces through rolling elements that could cause damage. Specialized mounting tools such as induction heaters facilitate correct installation while minimizing risk of component damage. Establishing proper preload or clearance is critical, with the specific setting depending on application requirements including speed, load, and temperature conditions.
What lubrication strategies ensure optimal bearing performance?
Lubrication is critical for the performance and longevity of Double Row Tapered Roller Bearings, with proper lubricant selection directly influencing operating temperature, friction, and wear rates. Key considerations include base oil viscosity, additive packages, and compatibility with sealing materials. Double Row Tapered Roller Bearings under heavy loads typically benefit from lubricants with higher viscosities and extreme pressure additives, while high-speed applications might require lower viscosity formulations. The lubrication delivery method must align with application requirements. Grease lubrication offers simplicity for many applications, while oil lubrication provides superior cooling capabilities for high-speed or high-temperature operations.
How can condition monitoring prevent catastrophic bearing failures?
Effective condition monitoring for Double Row Tapered Roller Bearings enables detection of developing issues before they progress to catastrophic failures. Vibration analysis represents one of the most valuable monitoring techniques, as characteristic frequency patterns can identify specific defects such as roller damage or raceway flaws. Temperature monitoring provides another valuable data stream, as abnormal temperature increases often indicate lubrication problems or developing damage. Acoustic emission analysis can detect high-frequency stress waves generated when microscopic surface damage occurs – often before becoming detectable through traditional vibration analysis.
Conclusion
Understanding the differences between various types of Double Row Tapered Roller Bearings is essential for selecting the optimal solution for specific applications. By considering factors such as load capacity, operating conditions, and maintenance requirements, engineers can make informed decisions that maximize equipment reliability and performance. The distinct characteristics of these bearings—from roller geometry and material composition to cage design and sealing solutions—directly impact their suitability for different industrial settings, whether in heavy machinery, high-speed applications, or harsh environments.
