Double Direction Angular Contact Thrust Ball Bearings for Machine Tools

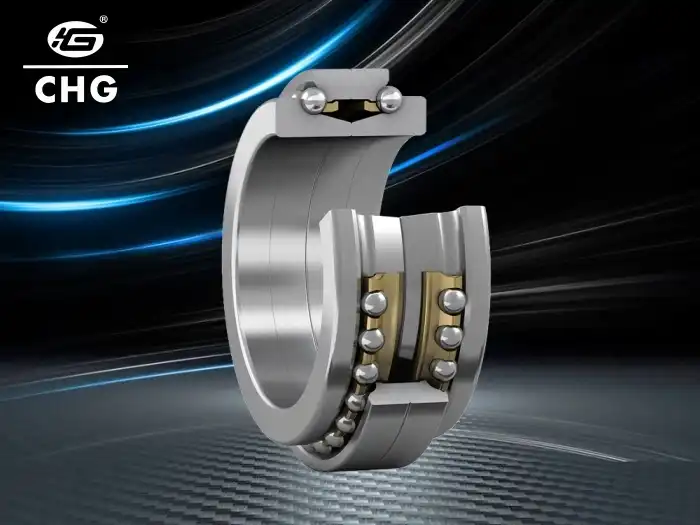

Double Direction Angular Contact Thrust Ball Bearings are a crucial component in modern machine tools, offering unparalleled performance and reliability in high-precision applications. These specialized bearings are designed to handle axial loads in both directions, making them ideal for machinery that experiences frequent changes in thrust direction. With their unique construction featuring three rings and two ball and cage assemblies separated by a shaft washer, these bearings provide exceptional stability and load-bearing capacity. The use of balls as rolling elements enables outstanding performance at high speeds, a critical factor in many machine tool applications. Moreover, their separable design facilitates easy mounting, dismounting, and inspection, enhancing maintainability and reducing downtime. As industries continue to demand higher precision and efficiency in their machinery, Double Direction Angular Contact Thrust Ball Bearings have become an indispensable element in the quest for improved performance and productivity.
What are the key advantages of Double Direction Angular Contact Thrust Ball Bearings?
Superior Load Handling Capacity
Double Direction Angular Contact Thrust Ball Bearings excel in their ability to handle heavy axial loads in both directions. This unique feature makes them invaluable in applications where the direction of thrust can change frequently or unexpectedly. The angular contact design allows for optimal distribution of forces, enabling these bearings to support significantly higher loads compared to conventional bearings. This superior load-handling capacity translates to increased equipment reliability and longevity, particularly in demanding industrial environments. Furthermore, the ability to accommodate bidirectional thrust eliminates the need for additional bearing components, simplifying machine design and reducing overall system complexity.
Enhanced Precision and Stability
Precision is paramount in machine tool applications, and Double Direction Angular Contact Thrust Ball Bearings deliver exceptional accuracy and stability. The angular contact design minimizes axial and radial runout, ensuring smooth and precise rotation even under heavy loads. This high level of precision is maintained across a wide range of operating speeds, making these bearings ideal for high-speed machining operations. The stability provided by these bearings also contributes to improved surface finish quality in machining processes, reducing the need for secondary finishing operations and increasing overall productivity.
Improved Heat Dissipation and Lubrication
Double Direction Angular Contact Thrust Ball Bearings are engineered with features that enhance heat dissipation and lubrication efficiency. The design allows for optimal lubricant flow, ensuring that all critical surfaces receive adequate lubrication even under high-speed conditions. This improved lubrication leads to reduced friction and wear, extending the operational life of the bearings. Additionally, the efficient heat dissipation characteristics of these bearings help maintain stable operating temperatures, preventing thermal expansion issues that could compromise precision and performance. The combination of effective lubrication and heat management makes these bearings particularly well-suited for continuous, high-speed operations in machine tools.
How do Double Direction Angular Contact Thrust Ball Bearings contribute to machine tool performance?
Increased Spindle Speed and Accuracy
Double Direction Angular Contact Thrust Ball Bearings play a crucial role in enhancing spindle performance in machine tools. Their ability to handle high speeds while maintaining precision allows for increased spindle speeds, leading to faster machining times and improved productivity. The angular contact design provides excellent axial and radial stiffness, which is essential for maintaining cutting accuracy, especially in high-speed milling and turning operations. By minimizing vibrations and deflections, these bearings contribute to superior surface finishes and tighter tolerances in machined parts, meeting the ever-increasing demands for precision in modern manufacturing.
Extended Machine Tool Lifespan
The durability and reliability of Double Direction Angular Contact Thrust Ball Bearings significantly contribute to extending the lifespan of machine tools. Their robust construction and ability to handle bidirectional thrust loads reduce wear and tear on other machine components, leading to fewer breakdowns and less frequent maintenance requirements. The efficient lubrication and heat dissipation properties of these bearings also play a crucial role in prolonging their operational life, ensuring consistent performance over extended periods. By reducing the frequency of bearing replacements and associated downtime, these bearings help maximize the return on investment for expensive machine tools.
Improved Energy Efficiency
Double Direction Angular Contact Thrust Ball Bearings contribute to improved energy efficiency in machine tools through their low-friction design. The optimized contact angle and precision-engineered surfaces minimize rolling resistance, reducing the power required to operate the machine. This reduction in energy consumption not only leads to lower operating costs but also aligns with the growing emphasis on sustainable manufacturing practices. Additionally, the efficient operation of these bearings results in less heat generation, further contributing to energy savings by reducing the cooling requirements for the machine tool. The combination of these factors makes Double Direction Angular Contact Thrust Ball Bearings an environmentally friendly choice for modern, energy-conscious manufacturing operations.
What are the key considerations when selecting Double Direction Angular Contact Thrust Ball Bearings for machine tools?
Load Capacity and Speed Ratings
When selecting Double Direction Angular Contact Thrust Ball Bearings for machine tools, it's crucial to consider both the load capacity and speed ratings. These bearings must be capable of handling the maximum axial loads expected in both directions while operating at the required speeds. Manufacturers typically provide detailed specifications for static and dynamic load capacities, as well as maximum permissible speeds. It's important to choose bearings that offer a safety margin above the anticipated operational requirements to ensure reliability and longevity. Additionally, consider the nature of the loads – whether they are continuous, intermittent, or shock loads – as this will influence the selection of the appropriate bearing size and series.
Precision Grade and Preload
The precision grade of Double Direction Angular Contact Thrust Ball Bearings is a critical factor in machine tool applications where accuracy is paramount. Higher precision grades offer tighter tolerances on dimensions and runout, resulting in more accurate machining operations. The choice of precision grade should be based on the specific requirements of the application, balancing performance needs with cost considerations. Preload is another important aspect to consider, as it affects the stiffness and accuracy of the bearing arrangement. Proper preload helps eliminate play in the bearing, enhances rigidity, and improves the overall precision of the machine tool. However, excessive preload can lead to increased friction and heat generation, so it's essential to select the optimal preload for each specific application.
Material and Lubrication Requirements
The material composition of Double Direction Angular Contact Thrust Ball Bearings plays a significant role in their performance and durability. High-quality steel alloys are typically used to ensure strength, hardness, and wear resistance. For applications involving corrosive environments or high temperatures, special materials or coatings may be necessary. The choice of lubrication is equally important, as it directly impacts the bearing's performance and lifespan. Factors to consider include the operating temperature range, speed, and environmental conditions. Some applications may require specialized lubricants or even oil-air lubrication systems for optimal performance. It's crucial to follow the manufacturer's recommendations for lubrication type and frequency to maintain the bearings in peak condition and prevent premature failure.
Conclusion
Double Direction Angular Contact Thrust Ball Bearings are indispensable components in modern machine tools, offering superior performance, precision, and reliability. Their unique design allows for bidirectional thrust load handling, making them ideal for a wide range of applications in the manufacturing industry. By carefully considering factors such as load capacity, precision grade, and material requirements, engineers and purchasing managers can select the optimal bearings to enhance machine tool performance and longevity. For expert guidance and high-quality bearing solutions, CHG Bearing stands ready to assist with our extensive experience and innovative products. Contact us at sale@chg-bearing.com to explore how our Double Direction Angular Contact Thrust Ball Bearings can elevate your machine tool performance.
