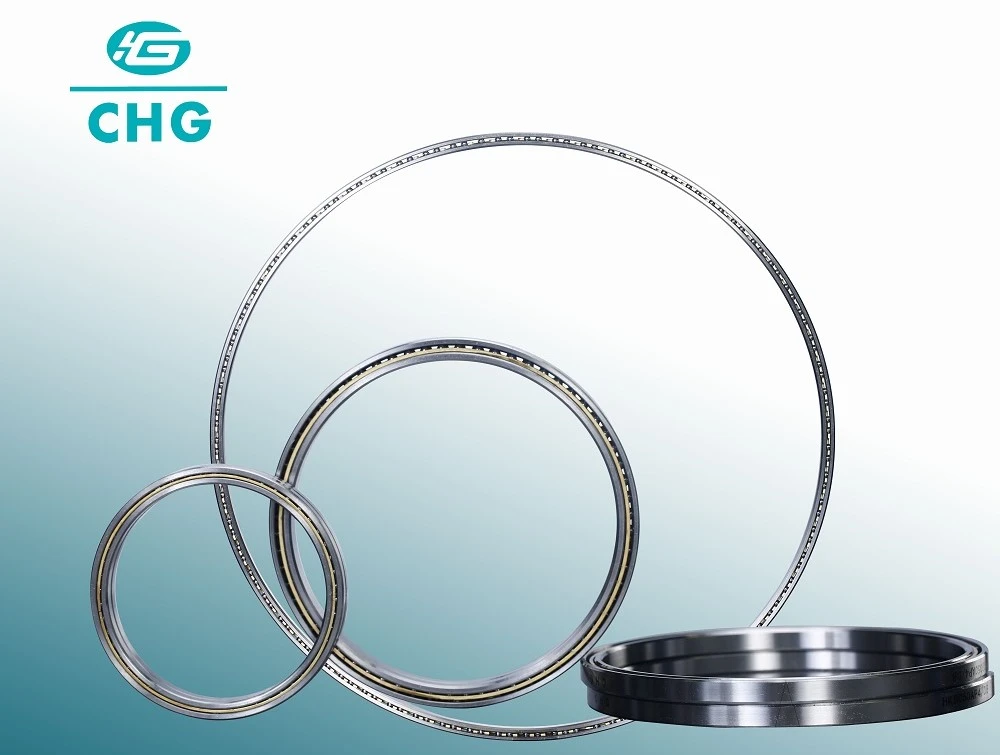

Enhance Your Equipment's Efficiency and Durability with Type A Thin Section Bearings
The evolution of modern machinery demands increasingly sophisticated components that can deliver superior performance while maintaining compact designs. Type A thin section bearings represent a breakthrough in bearing technology, offering an optimal balance of efficiency, durability, and space-saving characteristics that make them indispensable in various industrial applications. These innovative components have revolutionized the way engineers approach equipment design, providing solutions that were previously unattainable with conventional bearing technologies.
At Luoyang Huigong Bearing Technology Co., Ltd., we understand the critical role that precision bearings play in your operations. Our experienced R&D team provides technical guidance, customized solutions for different working conditions, and leverages 30 years of industry expertise through collaborations with major enterprises. With state-of-the-art production equipment and testing instruments, we've earned over 50 invention patents and obtained certifications including ISO9001 quality management system and ISO14001 environmental management system. As a 2024 quality benchmark enterprise, we're committed to delivering excellence in bearing solutions. Contact us at sale@chg-bearing.com or call +86-0379-65793878 to discover how we can enhance your equipment's performance.
What Makes Type A Thin Section Bearings Different from Standard Angular Contact Bearings?
The fundamental distinction between Type A thin section angular contact ball bearings and their standard counterparts lies in their revolutionary design philosophy, which represents a paradigm shift in bearing engineering. Unlike conventional angular contact bearings, Type A thin section bearings employ a constant-section design principle that maintains uniform cross-sectional dimensions throughout the entire series, regardless of bore diameter variations. This innovative approach to bearing design has profound implications for both manufacturers and end-users, as it enables unprecedented standardization across product lines while maintaining optimal performance characteristics. The constant cross-sectional profile serves as a cornerstone feature that distinguishes these bearings from traditional designs, offering engineers the flexibility to standardize mounting dimensions and simplify installation procedures across various applications.
The engineering significance of this constant cross-section design extends far beyond mere dimensional considerations. This architectural approach enables superior load distribution patterns that significantly enhance bearing performance under various operating conditions. The consistent wall thickness across different bore sizes ensures uniform stress distribution, leading to improved bearing stability and reduced vibration characteristics. This unique design feature also facilitates better heat dissipation properties, as the thermal gradients across the bearing structure remain more consistent compared to conventional designs. Furthermore, the standardized cross-section enables manufacturers to optimize their production processes, resulting in higher manufacturing precision and more consistent quality control standards across the entire product range.
The implications of this design philosophy resonate throughout the entire manufacturing ecosystem. Design engineers can now develop more efficient and streamlined product lines, knowing that the mounting requirements and performance characteristics will remain consistent across different bore sizes. This standardization has revolutionized inventory management systems, as manufacturers can maintain fewer unique components while serving a broader range of applications. The uniform cross-section also enables more accurate prediction of bearing behavior under various operating conditions, facilitating more precise engineering calculations and more reliable equipment design. This predictability has proven particularly valuable in high-precision applications where consistent performance is paramount.
How Do Size Specifications Impact Equipment Design and Performance?

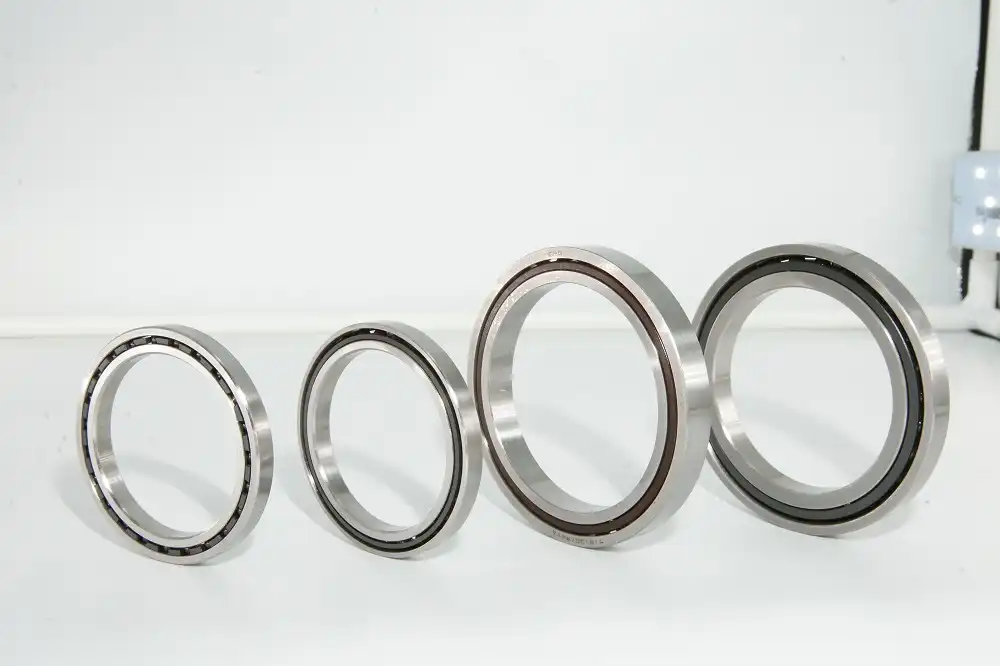

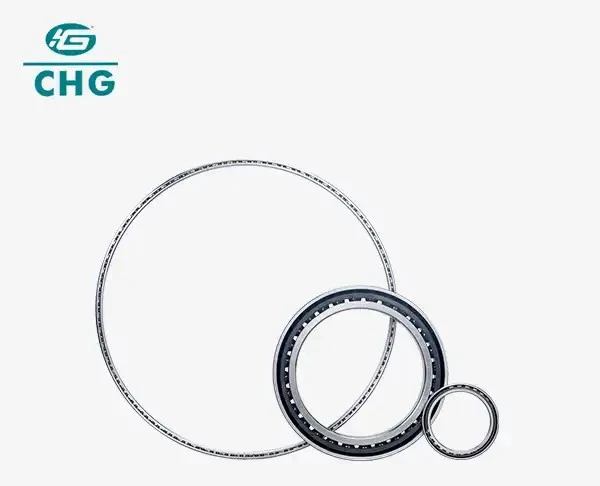

The dimensional versatility of Type A thin section bearings, encompassing bore diameters from 1 inch to 40 inches and cross-sections ranging from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch, represents a technological breakthrough that has fundamentally transformed equipment design possibilities. This extensive size range, combined with the constant cross-section principle, has created unprecedented opportunities for engineers to optimize equipment designs while maintaining structural integrity and performance requirements. The ability to select from such a comprehensive range of bore diameters while working with consistent cross-sectional dimensions has enabled designers to develop more compact and efficient machinery without compromising on load-bearing capacity or operational reliability.
The impact of these size specifications extends far beyond simple dimensional considerations, influencing everything from material selection to manufacturing processes. The availability of such a wide range of sizes, all maintaining consistent cross-sectional profiles, has enabled engineers to standardize design approaches across different equipment scales. This standardization has led to significant improvements in manufacturing efficiency, as similar tooling and assembly procedures can be utilized across various bearing sizes. The consistent cross-sectional dimensions have also facilitated the development of more precise installation procedures and maintenance protocols, as technicians can apply similar methodologies across different bearing sizes within the same series.
The relationship between bearing size specifications and equipment performance manifests in multiple ways that significantly influence overall system efficiency. The thin-wall design, maintained across all sizes, contributes to reduced rotational inertia, enabling faster acceleration and deceleration cycles in dynamic applications. This characteristic is particularly valuable in high-speed machinery where rapid position changes are required. Additionally, the consistent cross-sectional profile across different sizes ensures predictable deflection characteristics under load, allowing engineers to develop more accurate performance models and optimize equipment designs accordingly.
What Benefits Can Thin Section Bearings Bring to Your Manufacturing Process?
The integration of Type A thin section bearings into modern manufacturing processes has catalyzed a transformation in equipment design and operational efficiency that extends far beyond traditional bearing applications. The comprehensive benefits of these innovative components encompass not only immediate performance improvements but also long-term operational advantages that significantly impact the total cost of ownership for manufacturing equipment. The space-saving characteristics of thin section bearings, combined with their superior performance attributes, have enabled manufacturers to develop more compact and efficient machinery while simultaneously improving precision and reliability. This dual advantage has proven particularly valuable in industries where space constraints and performance requirements pose significant design challenges.
The performance enhancements facilitated by thin section bearings manifest in multiple ways that directly impact manufacturing productivity. The reduced friction characteristics of these bearings, achieved through optimized ball and raceway geometries combined with advanced surface finishing techniques, result in lower operating temperatures and reduced energy consumption. This improved thermal performance not only contributes to extended bearing life but also enables higher operating speeds and better overall system efficiency. The superior running accuracy of thin section bearings, maintained even under varying load conditions, ensures consistent product quality in precision manufacturing applications. Furthermore, the reduced weight of these bearings, compared to conventional alternatives, contributes to lower inertial loads in dynamic applications, enabling faster acceleration and deceleration cycles that can significantly improve production throughput.
The economic implications of implementing thin section bearings extend throughout the entire manufacturing operation. The space-efficient design enables more compact equipment configurations, reducing factory floor space requirements and associated facility costs. The improved reliability and extended service life of these bearings result in reduced maintenance requirements and longer intervals between planned maintenance activities, minimizing production disruptions and associated costs. The standardization enabled by the constant cross-section design simplifies inventory management and reduces spare parts requirements, leading to lower inventory carrying costs. Additionally, the energy efficiency improvements achieved through reduced friction and lower inertial loads contribute to decreased operational costs over the equipment's lifetime. These combined benefits make Type A Thin Section Bearings a cost-effective solution for manufacturers seeking to optimize their operations while maintaining high performance standards.
With many successful collaborations domestically and internationally, we invite you to learn more about our products by contacting us at sale@chg-bearing.com or calling our hotline at +86-0379-65793878.
