How Do Large Cylindrical Roller Bearings Handle High Radial Loads?
Large cylindrical roller bearings are essential components in industrial machinery, particularly for handling substantial radial loads. Their specialized design allows them to excel in applications where extreme forces act perpendicular to the shaft axis. The cylindrical rollers provide a larger contact area compared to ball bearings, distributing the load more effectively and ensuring greater durability under heavy operational conditions.
What makes Large Cylindrical Roller Bearings ideal for heavy industrial applications?
Design Features Enhancing Radial Load Capacity

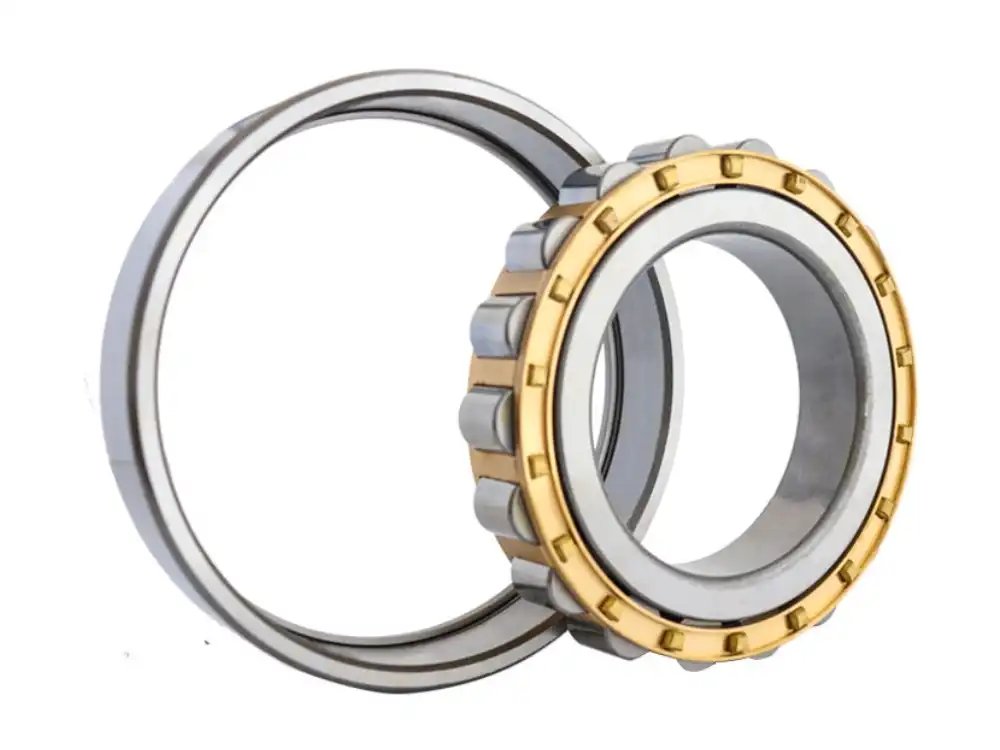

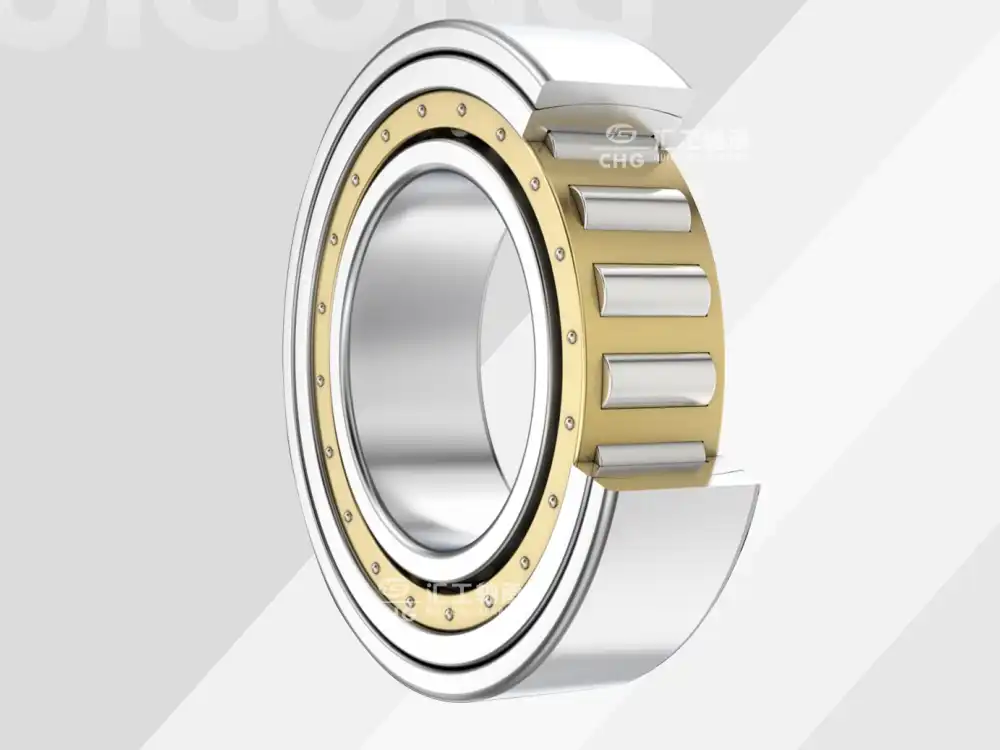

Large cylindrical roller bearings have unique design features that make them suitable for handling heavy radial loads. Their cylindrical rolling elements create a line contact with the raceways rather than the point contact found in ball bearings. This line contact distributes the load across a wider area, reducing contact stress and increasing load-carrying capacity. The internal clearance can be precisely adjusted to optimize performance under varying load conditions. The separable design allows for easier installation and maintenance in heavy machinery. These bearings can handle up to 80% higher radial loads compared to similarly sized ball bearings, making them essential in steel production, mining, and heavy manufacturing.
Material Composition and Heat Treatment Processes
The performance of Large Cylindrical Roller Bearings under high radial loads is largely due to their material composition and specialized heat treatment. Most premium bearings are manufactured using high-chrome bearing steel (typically 52100 or 100Cr6), offering excellent hardness, wear resistance, and dimensional stability. For extreme conditions, special alloys like carburized steel or high-nitrogen stainless steel may be used. The heat treatment process typically involves heating to temperatures between 800-860°C followed by controlled quenching and tempering. This creates a microstructure with fine, evenly distributed carbides that enhance the bearing's fatigue resistance and load-carrying capacity. Surface treatments can produce a surface hardness of 58-64 HRC while maintaining a tougher core, giving these bearings the perfect balance of surface hardness and internal toughness.
Lubrication Requirements for Optimal Performance
Proper lubrication is crucial for Large Cylindrical Roller Bearings to handle high radial loads effectively. These bearings generate significant heat under heavy loads, and appropriate lubrication reduces friction, dissipates heat, prevents corrosion, and extends fatigue life. Oil lubrication is often preferred over grease for high-load applications due to its superior cooling properties. Viscosity selection is critical – too thin, and the oil film may not adequately separate the rolling elements from the raceways; too thick, and excessive heat generation may occur. Specialized additives in the lubricant can form protective boundary layers on metal surfaces. Modern lubrication systems may include oil mist systems, circulating oil with cooling, or hybrid solutions. Regular oil analysis should be conducted to monitor contamination levels and lubricant condition.
How do Large Cylindrical Roller Bearings compare to other bearing types for radial load applications?
Load Capacity Comparison with Ball Bearings
Large Cylindrical Roller Bearings demonstrate superior radial load capacity compared to ball bearings due to their line contact geometry, which distributes pressure over a larger area. This fundamental difference allows them to handle approximately 60-80% higher radial loads than comparably sized ball bearings. Under heavy radial loads, ball bearings experience greater elastic deformation leading to increased friction and heat generation, whereas Large Cylindrical Roller Bearings maintain greater dimensional stability. The rolling resistance coefficient is also lower in properly installed cylindrical roller bearings, resulting in higher mechanical efficiency when handling pure radial loads. However, ball bearings retain advantages in applications with combined loads, as cylindrical roller bearings have limited axial load capacity unless specially designed with flanges.
Advantages Over Spherical and Tapered Roller Bearings
Large Cylindrical Roller Bearings offer distinct advantages in specific applications compared to spherical and tapered roller bearings. They provide lower friction and higher speed capabilities when dealing with primarily radial loads compared to spherical roller bearings. While spherical roller bearings offer self-aligning capability, they have more complex internal geometry and higher manufacturing costs. Compared to tapered roller bearings, cylindrical roller bearings excel in applications requiring pure radial load support without accommodating axial forces. The straight rolling elements eliminate the sliding motion that occurs in tapered designs, resulting in lower operating temperatures and reduced wear under high radial loads. For precision applications like machine tool spindles, the dimensional stability and running accuracy of Large Cylindrical Roller Bearings often make them the preferred choice.
Performance Characteristics Under Dynamic Load Conditions
Large Cylindrical Roller Bearings handle dynamic radial load conditions exceptionally well. They accommodate microscopic elastic deformations without significant changes in running clearance, and their line contact pattern distributes impact forces efficiently, reducing the risk of surface damage. They maintain consistent operating characteristics across a wide speed range while supporting heavy radial loads. The precision-manufactured cage structures ensure proper roller guidance during acceleration and deceleration phases, preventing skidding that could lead to premature wear. When properly installed with appropriate end-play and preload settings, these bearings demonstrate remarkable stability under fluctuating load conditions. After a proper run-in period, they often show improved operational characteristics as microscopic surface irregularities are smoothed through controlled wear.
What factors influence the lifespan of Large Cylindrical Roller Bearings under high radial loads?
Impact of Installation and Alignment Precision
Installation and alignment precision significantly impact the operational life of Large Cylindrical Roller Bearings. Minor alignment errors can dramatically reduce bearing life – a misalignment of just 0.001 radians can potentially reduce bearing life by up to 40%. Bearing seats should be manufactured to appropriate tolerance classes, typically IT5/IT6 for the shaft and IT6/IT7 for the housing. Proper mounting techniques are crucial; using hydraulic methods for large bearings helps prevent damage. For applications with significant temperature variations, consideration must be given to differential thermal expansion between components. Shaft and housing shoulders must be perpendicular to the axis within strict tolerances. Regular vibration analysis after installation can help verify proper alignment and installation.
Maintenance Practices and Condition Monitoring
Effective maintenance and condition monitoring are essential for maximizing the service life of Large Cylindrical Roller Bearings. Scheduled maintenance programs that include regular lubrication sampling and analysis can detect early signs of bearing wear. Continuous monitoring technologies such as vibration analysis, acoustic emission sensors, and temperature monitoring provide real-time insights into bearing health. Modern maintenance approaches increasingly utilize predictive techniques rather than fixed-interval replacements. When inspecting these bearings, attention should be paid to raceway surfaces for signs of spalling, roller surfaces for patterns indicating improper lubrication, and cage condition for evidence of fractures. Reconditioning may be economically viable for very large bearings. Proper sealing systems to protect bearings from contamination represent one of the most cost-effective maintenance practices.
Environmental Factors and Contamination Control
Environmental conditions and contamination control play pivotal roles in determining the operational lifespan of Large Cylindrical Roller Bearings. Small particles can damage bearing surfaces when trapped between rolling elements and raceways, with proper filtration potentially extending bearing life by 2-3 times. Advanced sealing solutions such as labyrinth seals, face seals, or magnetic seals may be necessary in harsh environments. Moisture ingress is particularly threatening, as water contamination as low as 250 ppm in oil can reduce bearing life by approximately 50%. In elevated temperature environments, special stabilization processes during manufacturing and synthetic lubricants may be required. For corrosive environments, stainless steel or ceramic hybrid bearings might be warranted. Electrical currents passing through bearings can cause electrical discharge machining damage, requiring proper grounding or insulated bearing designs.
Conclusion
Large Cylindrical Roller Bearings stand as essential components in industries requiring robust solutions for high radial load applications. Their superior design features, material properties, and load distribution capabilities make them exceptionally well-suited for demanding environments. By understanding the factors that influence their performance—from proper installation and maintenance to contamination control—engineers can maximize bearing lifespan and equipment reliability. As technology advances, these bearings continue to evolve, offering even greater load capacities and operational efficiencies for industrial applications.
