How Does an NU Cylindrical Roller Bearing Work?

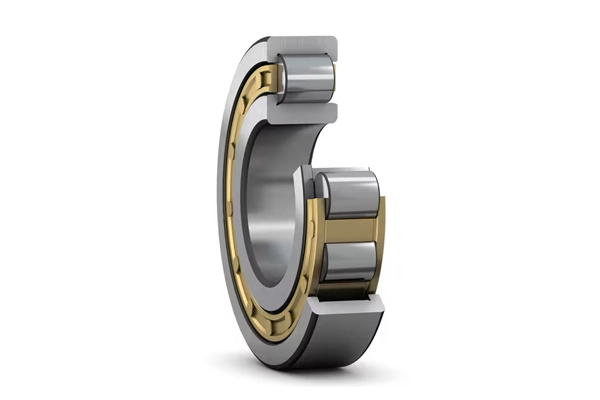

NU cylindrical roller bearings are specialized mechanical components designed to handle heavy radial loads while allowing for axial displacement. These bearings feature cylindrical rollers arranged between an inner and outer ring, with at least one of the rings having flanges on only one side. This unique design allows the bearing to accommodate thermal expansion and contraction within machinery, making it ideal for applications where components may shift axially during operation. The NU design specifically refers to bearings where the outer ring has two fixed flanges while the inner ring has none, enabling free axial movement of the shaft relative to the housing.
What are the key features of NU Cylindrical Roller Bearings?
Design Characteristics of NU Cylindrical Roller Bearings

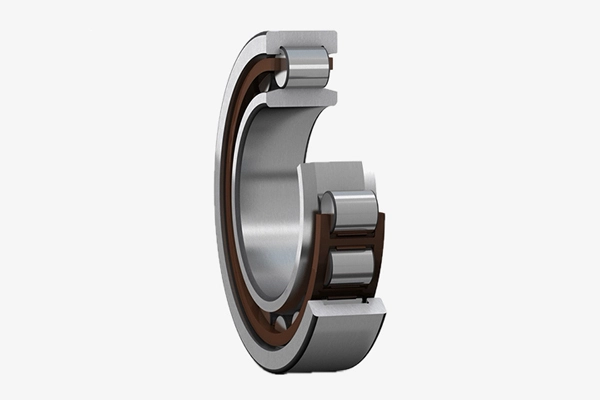

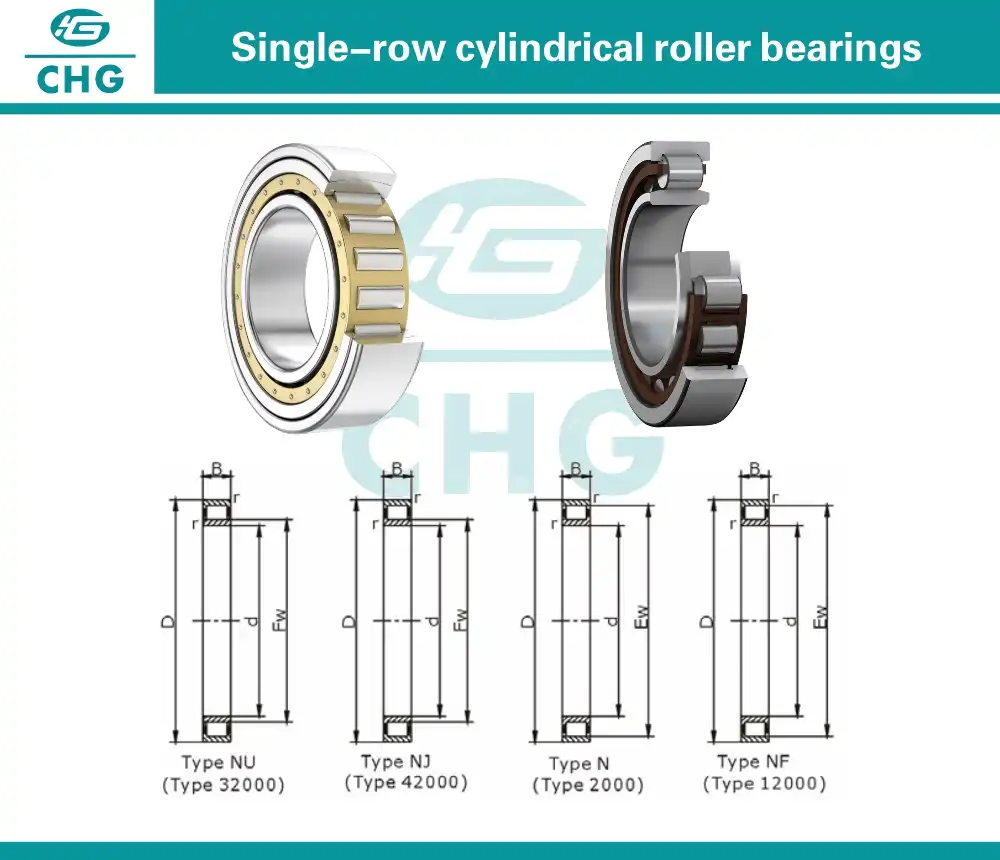

NU Cylindrical Roller Bearings possess distinctive design features that set them apart from other bearing types. The most notable characteristic is their internal structure, where cylindrical rollers operate between two rings. The outer ring contains two integral flanges that guide the rollers, while the inner ring has no flanges at all. This configuration allows for significant axial float of the inner ring relative to the outer ring, accommodating thermal expansion in applications where temperature fluctuations are common. The rollers themselves are precision-manufactured to maintain a consistent diameter and length, ensuring even load distribution. NU Cylindrical Roller Bearings also include a cage or retainer that maintains proper roller spacing and prevents roller-to-roller contact during operation. Modern designs often incorporate optimized roller profiles with slight crown modifications to prevent edge stress concentration and improve load distribution.
Load Capacity and Performance Specifications of NU Cylindrical Roller Bearings
NU Cylindrical Roller Bearings are engineered to handle exceptionally high radial loads due to the line contact between the cylindrical rollers and raceways, which distributes pressure across a larger surface area. Their load capacity significantly exceeds that of comparable ball bearings. Typical dynamic load ratings can range from several kilonewtons for smaller variants to hundreds of kilonewtons for larger industrial models. Speed ratings vary based on size and lubrication methods, with grease-lubricated bearings typically operating at lower maximum speeds than oil-lubricated variants. Standard NU Cylindrical Roller Bearings operate between -20°C and 120°C, while special heat-treated versions can function in environments up to 200°C. The precision classes follow ISO standards, with P0 (normal) to P4 (extra precision) classifications determining dimensional and running accuracy. The axial displacement capability is a defining performance parameter, allowing for movements that typically range from 0.5mm to several millimeters depending on bearing size.
Material Composition and Manufacturing Processes for NU Cylindrical Roller Bearings
NU Cylindrical Roller Bearings are predominantly manufactured from high-grade chrome steel, specifically 100Cr6 (AISI 52100) bearing steel, known for its exceptional hardness and wear resistance. For corrosive environments or extreme temperatures, stainless steel variants or specialty alloys may be employed. The manufacturing process begins with production of rings and rollers from steel bar stock, followed by precision machining operations. Components undergo heat treatment processes to achieve the required hardness (typically 58-65 HRC). Following heat treatment, components proceed through grinding and superfinishing operations that establish precise dimensions and surface finishes. The cage or retainer may be manufactured from brass, steel, or high-performance polymers like polyamide. Modern NU Cylindrical Roller Bearings often undergo surface treatments such as phosphating or black oxide coating to improve corrosion resistance. Quality control throughout the manufacturing process includes dimensional inspections, material analyses, and performance testing.
How do you install and maintain NU Cylindrical Roller Bearings?
Proper Installation Techniques for NU Cylindrical Roller Bearings
Proper installation of NU Cylindrical Roller Bearings is crucial for achieving optimal performance and maximum service life. Before beginning installation, verify that shaft and housing dimensions match bearing specifications. The installation area should be clean and free from contaminants. When mounting these bearings, force should always be applied to the ring being fitted (interference fit) to prevent damage to the rolling elements. For smaller bearings, mechanical or hydraulic presses with appropriate mounting sleeves are typically used, while larger NU Cylindrical Roller Bearings may require induction heating to expand the bearing before installation. The correct mounting temperature generally ranges between 80°C and 100°C. During installation, ensure that the bearing is mounted square to the shaft and housing to prevent misalignment. After installation, verification of proper axial clearance is necessary, as NU Cylindrical Roller Bearings require specific internal clearance to accommodate thermal expansion during operation. Proper lubrication immediately after installation is essential, following manufacturer specifications.
Lubrication Requirements and Practices for NU Cylindrical Roller Bearings
Proper lubrication is paramount for the optimal performance and longevity of NU Cylindrical Roller Bearings. These bearings rely on an effective lubricant film to separate the rolling elements from the raceways, reducing friction and preventing metal-to-metal contact. Both oil and grease lubrication methods are viable, with the selection depending on operating conditions. Oil lubrication is preferred for high-speed or high-temperature applications, as it provides superior cooling capabilities. The oil viscosity selection is critical, with ISO VG 32 to ISO VG 100 being common for normal industrial applications. Grease lubrication offers the advantage of simplicity and reduced maintenance requirements. Lithium complex greases with NLGI grades 2 or 3 are commonly used, offering good mechanical stability and water resistance. The relubrication frequency depends on operating conditions, with typical intervals ranging from 1,000 hours for severe conditions to 10,000 hours for light duty applications. Regardless of the lubrication method, contamination control is essential, as particles can damage the precision surfaces and accelerate wear.
Troubleshooting Common Issues with NU Cylindrical Roller Bearings
Identifying and resolving problems with NU Cylindrical Roller Bearings requires systematic analysis of symptoms and potential causes. Common issues include premature bearing failure, manifested through abnormal noise, excessive vibration, or increased operating temperature. Rhythmic noise typically indicates surface damage on the raceways or rollers, potentially caused by inadequate lubrication or contamination. Vibration analysis can reveal specific frequency signatures that help diagnose problems – high-frequency vibrations often point to surface damage, while lower-frequency vibrations may indicate misalignment or imbalance issues. Temperature elevation beyond normal operating parameters (typically 20-40°C above ambient) can signal lubrication problems or overtightened fits. Excessive axial movement beyond design specifications might indicate wear of the inner or outer ring flanges. Visual inspection of dismounted bearings can reveal telling wear patterns – uneven wear across the roller length suggests misalignment, while wear concentrated at roller edges indicates edge loading conditions. Regular condition monitoring using techniques such as vibration analysis, temperature measurement, and lubricant analysis provides early warning of developing problems.
What applications are NU Cylindrical Roller Bearings best suited for?
Industrial Machinery Applications for NU Cylindrical Roller Bearings
NU Cylindrical Roller Bearings excel in numerous industrial machinery applications where their unique combination of high radial load capacity and axial displacement capability proves invaluable. In steel manufacturing equipment, these bearings withstand extreme conditions in continuous casting machines and rolling mills. Paper production machinery benefits from NU Cylindrical Roller Bearings in press rolls, drying cylinders, and calendar stacks. Mining equipment extensively utilizes these bearings in crushers, screening equipment, and conveyor systems due to their durability under shock loads. The cement industry relies on them for rotary kilns, where they accommodate thermal expansion of the kiln shell while supporting substantial radial loads. In power generation, NU Cylindrical Roller Bearings find applications in turbines and generators. Machine tools benefit from the precision and rigidity of these bearings in spindle assemblies. The textile industry incorporates them in carding machines, spinning frames, and weaving looms, where their smooth operation contributes to fabric quality.
Automotive and Transportation Uses of NU Cylindrical Roller Bearings
NU Cylindrical Roller Bearings play a critical role in automotive and transportation systems. In transmission systems, these bearings support gear shafts and countershafts, allowing for thermal expansion while handling substantial forces. Heavy-duty truck wheel ends often incorporate these bearings, particularly in European designs. Railway rolling stock relies extensively on NU Cylindrical Roller Bearings in axlebox applications, where their durability under dynamic loading conditions proves advantageous. In automotive manufacturing equipment, these bearings support press tooling and stamping operations. Commercial vehicle differentials benefit from their ability to handle both radial loads from gear meshing and axial displacement from thermal changes. Agricultural machinery employs NU Cylindrical Roller Bearings in transmission components and wheel hubs. Electric vehicle powertrains increasingly utilize these bearings in reduction gearboxes, where their efficiency and compact design contribute to extended range.
Energy and Heavy Equipment Sectors Using NU Cylindrical Roller Bearings
The energy and heavy equipment sectors extensively utilize NU Cylindrical Roller Bearings due to their exceptional radial load capacity and ability to accommodate axial movement. In wind turbine applications, these bearings support main shafts and gearbox components. Hydroelectric power plants employ them in turbine support systems and generator assemblies. Oil and gas drilling operations rely on NU Cylindrical Roller Bearings in mud pumps, drawworks, and top drives, where their robustness under shock loading extends equipment uptime. Mining excavators and draglines incorporate these bearings in swing gears, propel transmissions, and bucket wheel assemblies. Coal pulverizers and grinding mills in power generation facilities depend on them to support heavy rotating components while accommodating thermal growth. Large industrial compressors utilize NU Cylindrical Roller Bearings to support rotors and shafts. Steam and gas turbines incorporate these bearings in various positions, from main shaft support to auxiliary systems.
Conclusion
NU Cylindrical Roller Bearings represent a critical component in modern mechanical systems, offering exceptional radial load capacity while accommodating axial displacement. Their unique design, featuring cylindrical rollers guided by flanged rings, makes them ideal for applications where thermal expansion must be considered alongside heavy loads. By understanding the proper installation, maintenance, and application of these bearings, engineers can maximize their performance and longevity across various industries.
