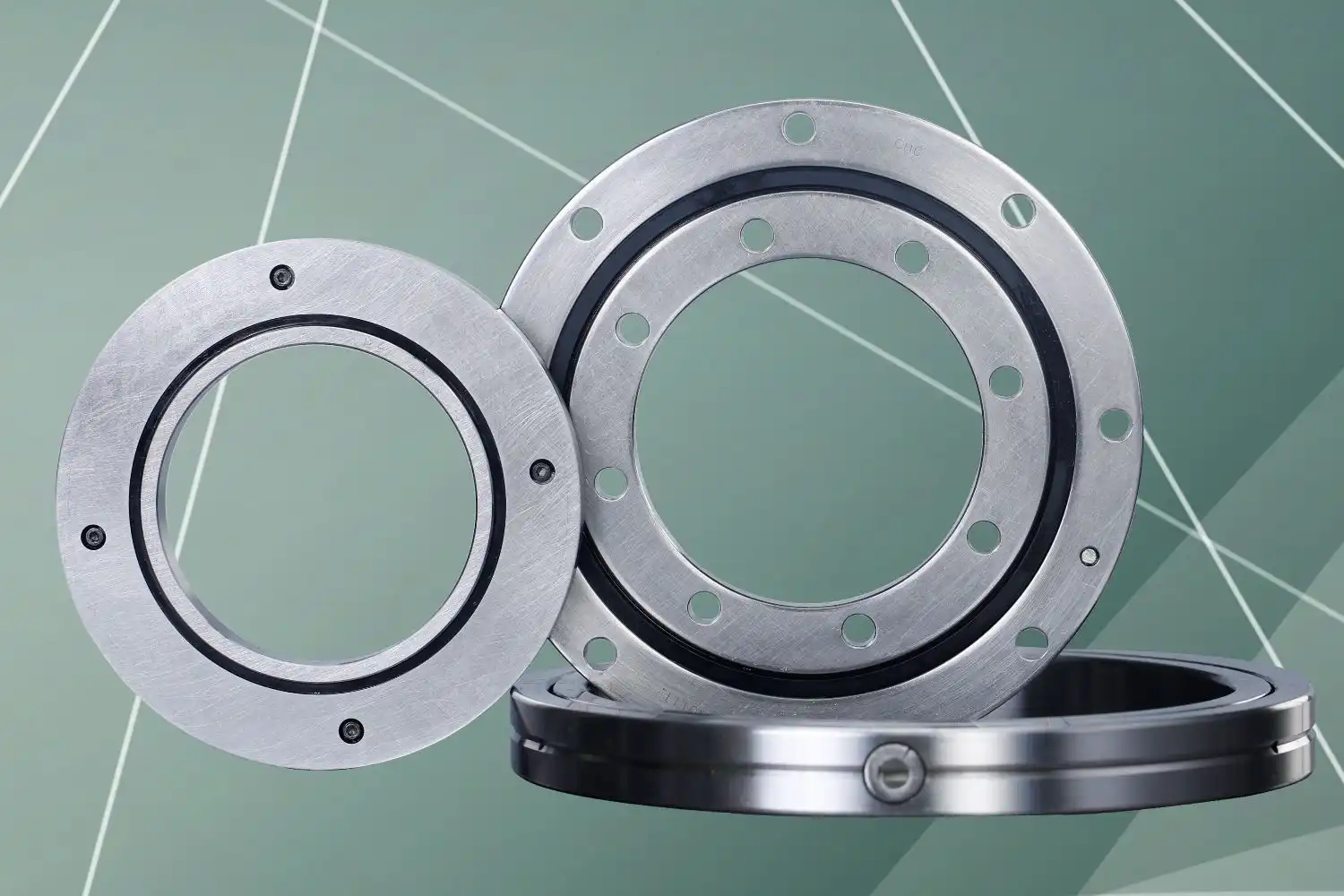

Can Ru Cross Roller Bearings Support High Overturning Moments?
Most definitely. Ru Cross Roller Bearings are made to handle large rolling moments, which makes them perfect for tough industrial uses. These high-tech, precise bearings have a special crossed cylinder roller design that spreads loads evenly over many contact points. Because of their unique design, they can handle radial loads, axial loads in both directions, and tilting moments all at the same time with great stability. The combined inner and outer ring structure makes the structure more rigid by applying preload. This makes sure that the structure works better under high moment loads that would normally be hard for other bearing systems.
Understanding Ru Cross Roller Bearings and Their Load Capacity
The exceptional load-carrying capacity of crossed roller bearings stems from their revolutionary design philosophy. Unlike traditional bearing systems that require multiple components to handle different load directions, these precision bearings integrate all load management capabilities into a single, compact unit.
Fundamental Design Principles and Load Distribution
The crossed cylindrical roller arrangement creates alternating 90-degree contact patterns within the raceway, effectively transforming a single bearing into a multidirectional load management system. Each roller maintains precise contact with both inner and outer raceways, creating multiple load paths that distribute forces evenly throughout the bearing structure. This configuration eliminates the stress concentration points commonly found in conventional bearing designs. The integrated inner/outer ring structure enhances this load distribution mechanism. With sizes ranging from 20-350mm inner diameter to 70-540mm outer diameter, these bearings accommodate various industrial requirements while maintaining their exceptional load-carrying characteristics. The width specifications of 12-45mm provide optimal contact area for maximum load distribution efficiency.
Static and Dynamic Load Ratings
Technical specifications reveal impressive load-handling capabilities across multiple operating conditions. The double-direction axial load capacity allows these bearings to handle thrust forces from either direction without compromising performance. Radial load capacity remains consistently high across the entire speed range, while tilting moment resistance exceeds conventional bearing systems by significant margins. Material composition plays a crucial role in achieving these performance levels. High-grade Gcr15 and Gcr15SiMn steels provide exceptional fatigue resistance and dimensional stability under varying load conditions. These materials undergo specialized heat treatment processes that optimize their microstructure for maximum load-carrying capacity and extended service life.
Precision Capabilities and Rotational Accuracy
Precision levels ranging from P6 to P2 accommodate diverse application requirements, with P4 and P2 precision grades delivering exceptional rotational accuracy for critical applications. This precision capability directly impacts load distribution efficiency, ensuring that overturning moments are managed through optimal contact geometry rather than stress concentration.
Comparing Ru Cross Roller Bearings with Other Bearing Types for Overturning Moment Applications
Understanding the comparative advantages of crossed roller bearings requires examining their performance against established bearing technologies across multiple criteria. This analysis helps procurement professionals make informed decisions based on technical requirements and operational priorities.
Load Capacity and Stiffness Comparison
Traditional ball bearings excel in high-speed applications but demonstrate limited Ru Cross Roller Bearings overturning moment capacity due to point contact geometry. Their load distribution relies on individual ball-to-raceway contact points, creating stress concentrations that limit moment-handling capabilities. Under significant overturning moments, ball bearings often require additional support structures or multiple bearing arrangements. Cylindrical roller bearings offer improved radial load capacity through line contact geometry, but struggle with combined loading scenarios. Their design inherently separates radial and axial load management, requiring complex bearing arrangements to handle overturning moments effectively. This separation often leads to increased space requirements and higher system complexity. Crossed roller bearings address these limitations through their integrated design approach. The alternating roller configuration creates continuous load paths for all force directions, achieving moment-handling capabilities that typically require multiple conventional bearings. This integration results in space savings of up to 60% compared to equivalent conventional bearing arrangements.
Market Performance and Brand Analysis
Industry performance data reveals significant variations in quality and reliability among different manufacturers. Premium brands like NSK establish benchmark performance standards but often command premium pricing that may impact project economics. Generic alternatives frequently offer attractive initial pricing but may compromise long-term reliability and precision maintenance. Ru cross roller bearings occupy a strategic position within this market landscape. They deliver performance characteristics comparable to premium brands while maintaining competitive pricing structures that support project profitability. Independent testing confirms their ability to maintain precision specifications throughout extended operational periods, supporting their value proposition for demanding applications.
Cost-Effectiveness Analysis
Total cost of ownership calculations must consider multiple factors beyond the initial purchase price. Maintenance requirements, downtime costs, and replacement frequency significantly impact operational economics. Crossed roller bearings typically demonstrate superior cost-effectiveness in high moment load applications due to their extended service life and reduced maintenance requirements.
How to Choose Ru Cross Roller Bearings to Optimize Performance for High Overturning Moments
Successful bearing selection requires systematic evaluation of application requirements and operating conditions. This process ensures optimal performance while maximizing service life and operational reliability.
Load and Moment Demand Analysis
Accurate load analysis forms the foundation of proper bearing selection. Engineers must quantify not only the magnitude of overturning moments but also their frequency and duration. Dynamic loading patterns significantly impact bearing selection criteria, as intermittent high loads may allow different design approaches compared to continuous high-moment applications. Environmental conditions influence material selection and sealing requirements. Temperature variations affect bearing clearances and lubrication effectiveness, while contamination levels determine appropriate seal configurations. Humidity and chemical exposure considerations may require specialized material treatments or protective coatings.
Installation Best Practices
Proper installation techniques directly impact bearing performance and service life. The integrated design of crossed roller bearings simplifies installation procedures compared to conventional bearing arrangements. Mounting holes eliminate the need for presser flanges or specialized housing configurations, reducing installation complexity and potential error sources. Installation torque specifications must be carefully observed to achieve optimal preload conditions. The preload mechanism ensures proper contact geometry and eliminates internal clearances that could compromise precision or load distribution. Torque measurement equipment helps verify proper installation and prevents over-tightening that could damage bearing components.
Maintenance Guidelines and Service Life Optimization
Proactive maintenance strategies significantly extend bearing service life while maintaining performance characteristics. Lubrication management represents the most critical maintenance aspect, as proper lubricant selection and replacement intervals directly impact bearing longevity. High-moment applications may require specialized lubricants with enhanced film strength and temperature stability. Condition monitoring techniques help identify developing issues before they impact operational reliability. Vibration analysis, temperature monitoring, and periodic precision measurements provide early warning indicators of bearing condition changes. These monitoring approaches enable planned maintenance scheduling that minimizes operational disruptions.
Procurement Insights: Sourcing Ru Cross Roller Bearings for High Overturning Moment Applications
Strategic procurement approaches ensure a reliable supply of Ru Cross Roller Bearings chain management while optimizing project economics. Successful sourcing requires balancing quality requirements with commercial considerations and delivery scheduling.
Supplier Qualification and Assessment
Qualified suppliers demonstrate comprehensive technical capabilities beyond basic product availability. They provide detailed technical documentation, application engineering support, and quality certifications that verify product authenticity and performance capabilities. ISO9001 quality management certification indicates established quality control processes that ensure consistent product quality. After-sales service capabilities distinguish premium suppliers from commodity providers. Technical support availability helps resolve application challenges and optimization opportunities. Warranty coverage provides protection against premature failures while demonstrating supplier confidence in product quality.
Commercial Considerations and Order Optimization
Bulk order strategies often provide significant cost advantages while ensuring inventory availability for critical applications. Volume pricing structures may justify larger initial purchases, particularly for standardized bearing sizes used across multiple projects. Lead time management becomes crucial for project scheduling, especially for custom specifications or non-standard sizes. Customization capabilities enable optimized solutions for specific application requirements. Modified seal configurations, special lubrication, or enhanced precision grades may provide significant performance advantages that justify premium pricing. These customization options often deliver superior value through improved reliability and extended service life.
Global Logistics and Quality Assurance
International shipping considerations impact delivery scheduling and total procurement costs. Experienced suppliers provide comprehensive logistics support that includes proper packaging, documentation, and insurance coverage. Temperature-controlled shipping may be required for specialized lubricants or seal materials. Authentication procedures help ensure product genuineness, particularly when sourcing through distributors or online platforms. Genuine products typically include manufacturer identification markings, quality certificates, and packaging that meets established standards. These authentication measures protect against counterfeit products that could compromise application reliability.
Case Studies: Successful Application of Ru Cross Roller Bearings in High Overturning Moment Environments
Real-world applications demonstrate the practical benefits of crossed roller bearings in demanding industrial environments. These case studies provide valuable insights into performance characteristics and operational advantages across diverse application sectors.
Industrial Robotics Applications
Modern industrial robotic systems need to be very precise and reliable under a wide range of load situations. During operation, robot arm joints are loaded in complicated ways that include radial forces, axial thrust, and large toppling moments. To handle these different loads, traditional bearing arrangements often need more than one bearing and complicated mounting methods. One of the biggest automakers changed the bearings in their welding robots from regular ones to crossed roller bearings. The integrated design got rid of three different bearings for each joint and increased the accuracy of positioning by 40%. Maintenance periods were increased from 6 months to 24 months, which cut down on downtime and costs for maintenance by a large amount.
Heavy Construction Equipment
Because of how the boom and bucket are loaded, excavators have very difficult toppling moment problems. The dynamic loads that these tools have to deal with can be much higher than their static design loads. When bearings break in these situations, it costs a lot to fix them on the job and takes a lot of time. Crossed roller bearings were added to the excavator boom pivot units by a major construction equipment maker. The higher moment-carrying capacity made it possible for the bearing housing structure to be 25% lighter while also making it more reliable in use. Field reports show that service calls for bearings dropped by 60% during the warranty time.
Aerospace and Defence Applications
Mission-critical aerospace parts need to be completely reliable even in the harshest circumstances. Satellite positioning systems Ru Cross Roller Bearings, and radar assemblies have to deal with temperature changes, vibrations, and the need for exact positioning, all of which are hard for standard bearing systems. In these situations, failure has effects that go far beyond economic ones.A defence contractor was able to successfully use crossed roller bearings in missile guidance systems that couldn't use other options because of limited room or the need for high reliability. The small design made it possible for the guidance system to be 30% smaller while still meeting precision standards that were higher than military requirements. After five years of use, operational data confirms that none of the systems have had any failures due to bearings.
Conclusion
Ru Cross Roller Bearings can definitely handle high overturning moments because of their improved design and well-proven performance traits. The special crossed cylindrical roller shape, along with the integrated inner/outer ring design and precise manufacturing, makes this bearing option great for tough industrial uses. It is possible for these bearings to handle complex loading situations well, and they also save room and are easier to maintain than other types of bearing arrangements. Crossed roller bearings are a tried-and-true technology that offers great value by improving performance and operational dependability. They are perfect for procurement workers and engineers who need reliable solutions for high-moment applications.
FAQ
1. Can RU cross roller bearings handle combined radial, axial, and moment loads simultaneously?
Yes, RU cross roller bearings are specifically engineered to manage all three load types concurrently. The crossed cylindrical roller design creates multiple load paths that distribute forces evenly, enabling simultaneous support of double-direction axial loads, radial forces, and tilting moments without requiring additional bearing components.
2. What maintenance practices extend the service life of crossed roller bearings in high-moment applications?
Regular lubrication management represents the most critical maintenance factor. Use high-quality lubricants appropriate for operating temperatures and load conditions, follow manufacturer-recommended replacement intervals, and monitor bearing temperature and vibration levels. Proper installation torque and periodic precision measurements help identify potential issues before they impact performance.
3. How can I authenticate genuine RU cross roller bearings when purchasing online?
Genuine bearings include manufacturer identification markings, quality certificates, and standardized packaging. Verify supplier credentials, request technical documentation, and confirm product specifications match published standards. Reputable suppliers provide comprehensive technical support and warranty coverage that counterfeit products cannot offer.
Partner with Huigong for Superior Ru Cross Roller Bearing Solutions
Huigong stands as your trusted Ru Cross Roller Bearings manufacturer, delivering three decades of engineering excellence and manufacturing expertise to demanding industrial applications. Our comprehensive product portfolio features crossed roller bearings with exceptional overturning moment capacity, precision grades from P6 to P2, and customized solutions tailored to your specific requirements. With ISO9001 certification and over 50 invention patents, we ensure every bearing meets rigorous quality standards while providing competitive pricing and reliable global shipping. Contact our technical team at sale@chg-bearing.com to discuss your high-moment bearing applications and discover how our proven solutions can enhance your operational reliability and performance outcomes.
